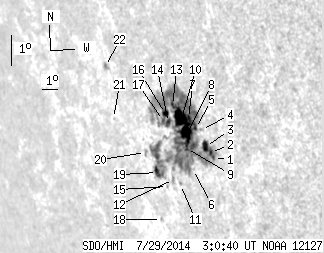

SDO HMI 2014-07-29 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.87 | 333.70 | 64.78 | 342.37 | -8.28 | 249.14 | -59.43 | 102.70 | 0.8752 | 438.7 | -4.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 317.58 | 1.23 | 324.84 | -8.94 | 250.94 | -57.63 | 103.87 | 0.8614 | 648.0 | 6.2 | |
| 1.81 | -1.00 | 1.76 | -1.00 | -8.80 | 250.80 | -57.77 | 103.67 | 0.8623 | 798.3 | 999999 | |
| 5.16 | -1.00 | 5.05 | -1.00 | -8.63 | 250.55 | -58.02 | 103.42 | 0.8641 | 643.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.60 | -8.11 | 250.44 | -58.13 | 102.80 | 0.8641 | 647.0 | 596.8 | |
| 1.09 | -1.00 | 1.07 | -1.00 | -8.11 | 250.09 | -58.48 | 102.72 | 0.8672 | 752.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.37 | -9.43 | 249.63 | -58.94 | 104.11 | 0.8733 | 2.0 | -105.0 | |
| 2.90 | -1.00 | 2.89 | -1.00 | -7.83 | 249.74 | -58.83 | 102.33 | 0.8696 | 900.6 | 999999 | |
| 14.59 | -1.00 | 14.70 | -1.00 | -8.35 | 249.49 | -59.08 | 102.86 | 0.8725 | 616.6 | 999999 | |
| 2.08 | -1.00 | 2.11 | -1.00 | -8.79 | 249.38 | -59.19 | 103.33 | 0.8742 | 206.2 | 999999 | |
| 19.66 | -1.00 | 19.86 | -1.00 | -7.86 | 249.31 | -59.26 | 102.27 | 0.8733 | 794.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.66 | -9.98 | 248.67 | -59.90 | 104.50 | 0.8820 | -673.0 | -609.1 | |
| 0.00 | 3.44 | 0.00 | 3.64 | -9.86 | 248.27 | -60.30 | 104.27 | 0.8849 | -528.0 | -485.2 | |
| 1.45 | -1.00 | 1.48 | -1.00 | -7.50 | 248.85 | -59.72 | 101.76 | 0.8765 | 452.2 | 999999 | |
| 3.44 | -1.00 | 3.57 | -1.00 | -8.06 | 248.46 | -60.11 | 102.31 | 0.8805 | 299.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.26 | -10.12 | 247.81 | -60.76 | 104.45 | 0.8890 | -373.0 | -363.5 | |
| 3.71 | -1.00 | 3.86 | -1.00 | -7.79 | 248.34 | -60.23 | 101.98 | 0.8811 | 405.3 | 999999 | |
| 2.45 | -1.00 | 2.56 | -1.00 | -8.02 | 248.16 | -60.41 | 102.21 | 0.8829 | 108.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.21 | -11.22 | 247.03 | -61.54 | 105.49 | 0.8966 | -550.0 | -407.6 | |
| 4.26 | -1.00 | 4.64 | -1.00 | -9.72 | 247.29 | -61.28 | 103.90 | 0.8923 | -700.4 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.81 | -9.15 | 246.69 | -61.88 | 103.14 | 0.8960 | -743.0 | -564.7 | |
| 0.00 | 0.54 | 0.00 | 0.64 | -8.25 | 244.78 | -63.79 | 101.78 | 0.9088 | -190.0 | -128.2 | |
| 0.00 | 3.71 | 0.00 | 4.34 | -6.65 | 244.65 | -63.92 | 100.01 | 0.9077 | 309.0 | 282.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
