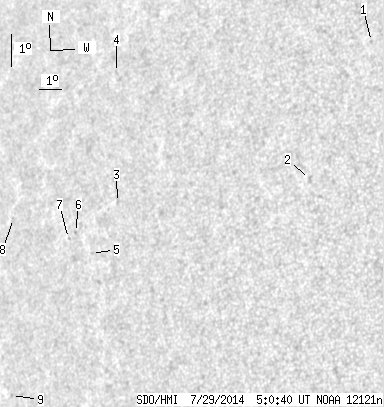

SDO HMI 2014-07-29 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.25 | 0.00 | 7.45 | 11.19 | 260.50 | -46.98 | 79.58 | 0.7296 | 233.1 | 68.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.58 | 16.52 | 268.48 | -38.99 | 70.74 | 0.6412 | -509.0 | -482.4 | |
| 0.00 | 3.08 | 0.00 | 2.01 | 12.15 | 266.87 | -40.61 | 77.81 | 0.6532 | -696.0 | -569.5 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 10.90 | 258.69 | -48.79 | 80.37 | 0.7516 | 462.0 | 340.6 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 14.84 | 257.59 | -49.88 | 75.25 | 0.7667 | 289.0 | 246.5 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 9.26 | 257.78 | -49.69 | 82.56 | 0.7613 | 540.0 | 516.6 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 9.84 | 256.89 | -50.58 | 81.81 | 0.7712 | 597.0 | 535.7 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 9.64 | 256.59 | -50.88 | 82.09 | 0.7745 | 449.0 | 404.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 10.04 | 253.71 | -53.77 | 81.62 | 0.8050 | 437.0 | 469.7 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 4.67 | 254.53 | -52.95 | 88.36 | 0.7980 | 529.0 | 419.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
