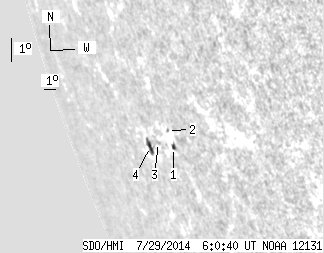

SDO HMI 2014-07-29 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 12.33 | 9.77 | 20.77 | -18.22 | 237.00 | -69.92 | 111.02 | 0.9569 | -156.9 | -126.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 2.63 | 2.11 | 4.07 | -18.16 | 238.56 | -68.37 | 111.28 | 0.9493 | 78.9 | 45.4 | |
| 0.00 | 1.09 | 0.00 | 1.69 | -17.61 | 238.48 | -68.44 | 110.70 | 0.9491 | 239.0 | 188.3 | |
| 0.00 | 1.45 | 0.00 | 2.41 | -18.12 | 237.23 | -69.69 | 110.96 | 0.9558 | -356.0 | -316.8 | |
| 4.35 | 7.16 | 7.66 | 12.60 | -18.34 | 236.26 | -70.67 | 110.99 | 0.9606 | -247.5 | -209.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
