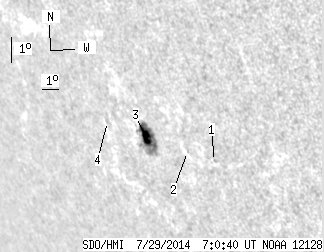

SDO HMI 2014-07-29 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.51 | 44.42 | 11.95 | 46.07 | -20.50 | 249.62 | -56.76 | 116.96 | 0.8808 | 589.6 | 293.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.86 | -21.03 | 253.24 | -53.14 | 118.86 | 0.8547 | -203.0 | -179.9 | |
| 0.00 | 0.82 | 0.00 | 0.80 | -20.81 | 251.85 | -54.52 | 118.09 | 0.8648 | 420.0 | 323.6 | |
| 11.51 | 41.15 | 11.95 | 42.71 | -20.50 | 249.59 | -56.79 | 116.94 | 0.8810 | 714.5 | 316.6 | |
| 0.00 | 1.54 | 0.00 | 1.70 | -20.18 | 247.44 | -58.94 | 115.89 | 0.8956 | 60.0 | 98.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
