SDO HMI 2014-07-29 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.80 | 0.00 | 6.87 | 12.83 | 261.11 | -44.72 | 77.12 | 0.7023 | 119.9 | -8.1 | |
|
previous
or next observation for the same group /

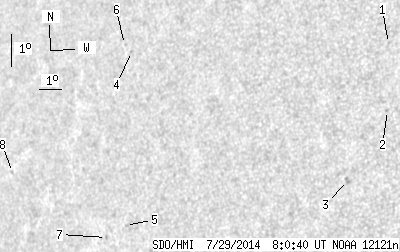

back to the solar disc SDO HMI 2014-07-29 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.55 | 267.69 | -38.14 | 70.45 | 0.6305 | -403.0 | -372.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 14.48 | 268.09 | -37.74 | 73.58 | 0.6200 | -546.0 | -492.8 | |
| 0.00 | 3.44 | 0.00 | 2.20 | 12.25 | 266.91 | -38.92 | 77.38 | 0.6314 | -658.0 | -505.7 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 15.58 | 256.63 | -49.20 | 74.20 | 0.7600 | 518.0 | 396.7 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 10.27 | 257.73 | -48.10 | 81.17 | 0.7434 | 631.0 | 528.0 | |
| 0.00 | 0.73 | 0.00 | 0.55 | 15.77 | 256.23 | -49.60 | 74.01 | 0.7646 | 340.0 | 302.6 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 9.85 | 256.92 | -48.91 | 81.77 | 0.7525 | 607.0 | 542.5 | |
| 0.00 | 1.18 | 0.00 | 0.99 | 11.47 | 251.84 | -53.99 | 79.84 | 0.8076 | 470.0 | 399.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
