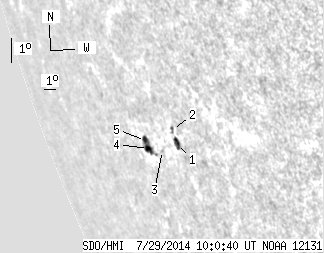

SDO HMI 2014-07-29 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.23 | 23.84 | 19.97 | 35.63 | -18.23 | 237.21 | -67.53 | 111.55 | 0.9448 | -175.6 | -92.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.08 | 6.07 | 5.63 | 8.38 | -18.04 | 239.03 | -65.70 | 111.78 | 0.9347 | 263.3 | 53.5 | |
| 0.00 | 2.18 | 0.00 | 3.00 | -17.59 | 238.96 | -65.77 | 111.29 | 0.9345 | 426.0 | 307.4 | |
| 0.00 | 1.18 | 0.00 | 1.74 | -18.41 | 237.53 | -67.20 | 111.81 | 0.9436 | -319.0 | -297.1 | |
| 5.98 | 14.41 | 9.37 | 22.51 | -18.46 | 236.29 | -68.45 | 111.58 | 0.9501 | -391.0 | -244.4 | |
| 3.17 | -4.00 | 4.97 | -4.00 | -18.20 | 236.24 | -68.49 | 111.30 | 0.9500 | -358.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
