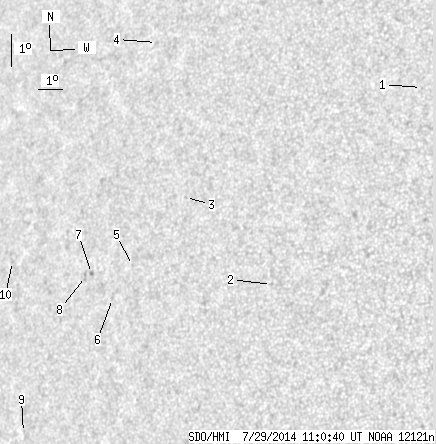

SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.31 | 0.00 | 9.56 | 10.96 | 257.81 | -46.37 | 80.02 | 0.7233 | 157.8 | 223.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.28 | 16.33 | 269.41 | -34.77 | 69.63 | 0.5860 | -690.0 | -597.8 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 9.97 | 264.62 | -39.56 | 81.06 | 0.6372 | -360.0 | -268.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 12.40 | 260.62 | -43.56 | 77.84 | 0.6908 | -546.0 | -352.2 | |
| 0.00 | 1.72 | 0.00 | 1.24 | 17.05 | 258.11 | -46.07 | 71.72 | 0.7274 | 176.0 | 183.9 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 10.18 | 258.74 | -45.45 | 81.18 | 0.7121 | 611.0 | 530.0 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 9.12 | 258.03 | -46.15 | 82.69 | 0.7202 | 468.0 | 336.9 | |
| 0.00 | 1.90 | 0.00 | 1.38 | 9.81 | 256.96 | -47.22 | 81.77 | 0.7331 | 691.0 | 564.0 | |
| 0.00 | 3.26 | 0.00 | 2.38 | 9.70 | 256.71 | -47.48 | 81.93 | 0.7360 | 389.0 | 412.0 | |
| 0.00 | 0.36 | 0.00 | 0.28 | 4.77 | 254.52 | -49.67 | 88.48 | 0.7622 | 549.0 | 531.0 | |
| 0.00 | 1.99 | 0.00 | 1.56 | 9.91 | 253.19 | -50.99 | 81.74 | 0.7757 | 290.0 | 220.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
