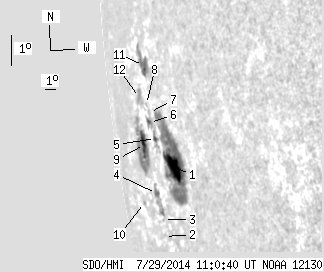

SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.19 | 243.12 | 122.38 | 567.05 | -7.17 | 227.48 | -76.71 | 98.62 | 0.9772 | 112.6 | -33.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.29 | 130.58 | 47.41 | 267.16 | -7.54 | 229.22 | -74.96 | 99.22 | 0.9710 | 463.5 | 159.4 | |
| 0.00 | 2.08 | 0.00 | 5.42 | -9.95 | 226.44 | -77.74 | 101.30 | 0.9824 | -221.0 | -229.7 | |
| 0.00 | 0.72 | 0.00 | 1.82 | -9.39 | 226.74 | -77.44 | 100.77 | 0.9811 | -250.0 | -232.4 | |
| 2.36 | 15.22 | 6.05 | 38.69 | -8.62 | 226.28 | -77.90 | 99.94 | 0.9823 | -406.5 | -271.8 | |
| 2.08 | 14.23 | 4.89 | 33.87 | -6.82 | 227.27 | -76.91 | 98.24 | 0.9782 | 121.7 | 113.3 | |
| 1.90 | -5.00 | 4.67 | -5.00 | -6.38 | 226.65 | -77.53 | 97.72 | 0.9801 | 209.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 5.46 | -6.06 | 226.82 | -77.37 | 97.41 | 0.9794 | 185.0 | 204.2 | |
| 0.00 | 1.00 | 0.00 | 2.46 | -5.84 | 226.49 | -77.70 | 97.15 | 0.9805 | 331.0 | 296.9 | |
| 13.59 | 45.67 | 37.69 | 131.61 | -7.19 | 225.42 | -78.77 | 98.37 | 0.9844 | 48.2 | -300.3 | |
| 0.00 | 1.90 | 0.00 | 6.29 | -9.14 | 223.84 | -80.35 | 100.15 | 0.9894 | -388.0 | -340.6 | |
| 8.97 | 19.94 | 21.67 | 48.72 | -4.63 | 226.58 | -77.61 | 95.93 | 0.9797 | -358.6 | -289.6 | |
| 0.00 | 9.51 | 0.00 | 25.55 | -5.72 | 225.47 | -78.71 | 96.91 | 0.9837 | -337.0 | -230.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
