SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.69 | 23.10 | 17.03 | 33.66 | -18.23 | 237.16 | -67.02 | 111.67 | 0.9421 | -115.0 | -154.6 | |
|
previous
or next observation for the same group /

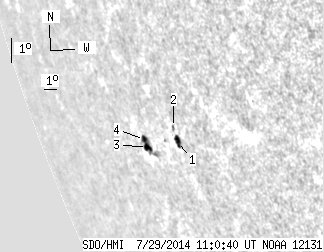

back to the solar disc SDO HMI 2014-07-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 6.52 | 6.09 | 8.77 | -18.02 | 239.04 | -65.14 | 111.89 | 0.9314 | 293.9 | 122.9 | |
| 0.00 | 1.72 | 0.00 | 2.31 | -17.56 | 239.06 | -65.13 | 111.42 | 0.9307 | 365.0 | 333.7 | |
| 4.35 | 14.86 | 6.65 | 22.58 | -18.48 | 236.25 | -67.93 | 111.71 | 0.9475 | -388.9 | -315.4 | |
| 2.81 | -3.00 | 4.29 | -3.00 | -18.22 | 236.20 | -67.98 | 111.44 | 0.9474 | -382.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
