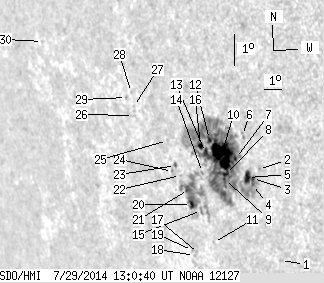

SDO HMI 2014-07-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.87 | 387.95 | 57.58 | 342.03 | -8.34 | 249.01 | -54.07 | 104.07 | 0.8279 | 396.1 | 38.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.91 | -11.14 | 251.71 | -51.37 | 108.18 | 0.8090 | 175.0 | 222.0 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -8.32 | 251.23 | -51.85 | 104.64 | 0.8064 | 575.0 | 434.2 | |
| 1.09 | 308.84 | 0.92 | 269.39 | -8.63 | 250.87 | -52.21 | 104.91 | 0.8108 | 799.9 | 151.1 | |
| 1.00 | -3.00 | 0.84 | -3.00 | -8.82 | 250.83 | -52.25 | 105.13 | 0.8116 | 803.9 | 999999 | |
| 6.07 | -3.00 | 5.14 | -3.00 | -8.61 | 250.62 | -52.46 | 104.83 | 0.8132 | 661.4 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.13 | -7.30 | 250.61 | -52.47 | 103.25 | 0.8103 | -229.0 | -87.1 | |
| 1.54 | -3.00 | 1.32 | -3.00 | -8.06 | 250.11 | -52.97 | 104.03 | 0.8169 | 749.6 | 999999 | |
| 2.63 | -3.00 | 2.28 | -3.00 | -8.61 | 249.49 | -53.59 | 104.51 | 0.8241 | 352.9 | 999999 | |
| 0.27 | -3.00 | 0.24 | -3.00 | -8.77 | 249.40 | -53.68 | 104.68 | 0.8253 | 197.0 | 999999 | |
| 37.51 | -3.00 | 32.57 | -3.00 | -7.99 | 249.40 | -53.68 | 103.75 | 0.8236 | 792.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -10.84 | 248.31 | -54.77 | 106.80 | 0.8401 | -577.0 | -537.0 | |
| 1.81 | -3.00 | 1.59 | -3.00 | -7.57 | 248.85 | -54.23 | 103.11 | 0.8279 | 513.3 | 999999 | |
| 3.17 | -3.00 | 2.81 | -3.00 | -8.00 | 248.56 | -54.52 | 103.54 | 0.8316 | 437.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -8.64 | 248.26 | -54.82 | 104.23 | 0.8358 | 190.0 | 165.7 | |
| 0.00 | 2.81 | 0.00 | 2.56 | -9.86 | 247.92 | -55.16 | 105.56 | 0.8415 | -571.0 | -574.4 | |
| 2.63 | -3.00 | 2.34 | -3.00 | -7.80 | 248.33 | -54.75 | 103.25 | 0.8334 | 375.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -11.26 | 247.37 | -55.72 | 107.02 | 0.8495 | -156.0 | -167.0 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -11.35 | 247.12 | -55.96 | 107.04 | 0.8519 | -579.0 | -481.1 | |
| 0.00 | 1.00 | 0.00 | 0.94 | -11.19 | 247.05 | -56.03 | 106.85 | 0.8521 | -619.0 | -550.6 | |
| 3.71 | 57.35 | 3.43 | 52.44 | -9.72 | 247.41 | -55.67 | 105.25 | 0.8458 | -713.7 | -457.7 | |
| 3.62 | -20.00 | 3.34 | -20.00 | -9.25 | 247.36 | -55.72 | 104.70 | 0.8453 | -646.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -8.84 | 247.01 | -56.07 | 104.14 | 0.8475 | -402.0 | -322.7 | |
| 0.82 | 2.08 | 0.76 | 1.94 | -8.54 | 246.80 | -56.28 | 103.74 | 0.8488 | 370.6 | 305.1 | |
| 0.00 | 1.72 | 0.00 | 1.62 | -8.75 | 246.59 | -56.49 | 103.93 | 0.8511 | 36.0 | 65.1 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -7.79 | 246.52 | -56.56 | 102.80 | 0.8499 | -143.0 | -149.2 | |
| 0.00 | 1.45 | 0.00 | 1.42 | -7.16 | 244.70 | -58.38 | 101.67 | 0.8648 | 429.0 | 292.5 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -6.88 | 244.76 | -58.33 | 101.36 | 0.8638 | 303.0 | 257.0 | |
| 0.00 | 0.82 | 0.00 | 0.80 | -6.44 | 244.72 | -58.36 | 100.86 | 0.8634 | 194.0 | 234.9 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -6.63 | 244.39 | -58.69 | 101.00 | 0.8665 | 299.0 | 214.1 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -5.33 | 239.25 | -63.84 | 98.60 | 0.9056 | -260.0 | -243.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
