SDO HMI 2014-07-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.25 | 0.00 | 9.11 | 11.27 | 258.65 | -43.87 | 79.12 | 0.6942 | 326.5 | 283.0 | |
|
previous
or next observation for the same group /

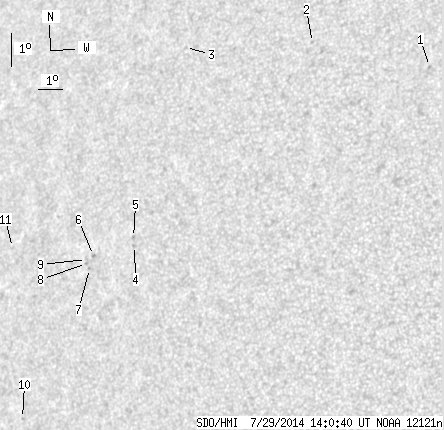

back to the solar disc SDO HMI 2014-07-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | 16.41 | 269.43 | -33.10 | 68.80 | 0.5639 | -649.0 | -480.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 16.91 | 264.75 | -37.77 | 69.76 | 0.6269 | -490.0 | -459.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 16.44 | 259.56 | -42.97 | 71.91 | 0.6900 | 298.0 | 203.9 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 10.26 | 258.74 | -43.79 | 80.97 | 0.6918 | 280.0 | 362.5 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 10.50 | 258.65 | -43.88 | 80.62 | 0.6931 | 747.0 | 587.1 | |
| 0.00 | 1.54 | 0.00 | 1.08 | 9.84 | 257.02 | -45.51 | 81.66 | 0.7127 | 720.0 | 604.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 9.43 | 256.91 | -45.62 | 82.24 | 0.7138 | 534.0 | 482.8 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 9.58 | 256.76 | -45.77 | 82.04 | 0.7158 | 552.0 | 491.6 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 9.70 | 256.73 | -45.79 | 81.87 | 0.7161 | 604.0 | 424.1 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 4.68 | 254.51 | -48.01 | 88.73 | 0.7433 | 530.0 | 458.2 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 9.83 | 253.31 | -49.22 | 81.81 | 0.7561 | 466.0 | 310.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
