SDO HMI 2014-07-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.08 | 272.02 | 106.23 | 556.43 | -7.17 | 227.57 | -74.96 | 98.86 | 0.9704 | 110.7 | 8.4 | |
|
previous
or next observation for the same group /

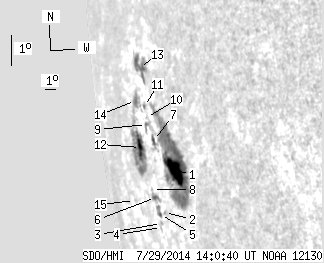

back to the solar disc SDO HMI 2014-07-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.63 | 162.14 | 46.69 | 299.78 | -7.55 | 229.30 | -73.23 | 99.49 | 0.9635 | 476.2 | 152.3 | |
| 0.00 | 1.27 | 0.00 | 2.65 | -9.05 | 227.36 | -75.17 | 100.74 | 0.9727 | 284.0 | 184.6 | |
| 0.00 | 1.18 | 0.00 | 2.59 | -9.45 | 226.72 | -75.81 | 101.06 | 0.9754 | -282.0 | -236.1 | |
| 0.00 | 0.91 | 0.00 | 2.02 | -9.58 | 226.63 | -75.90 | 101.18 | 0.9758 | -344.0 | -359.8 | |
| 1.27 | 5.43 | 2.78 | 11.99 | -9.16 | 226.79 | -75.74 | 100.78 | 0.9750 | -237.6 | -259.2 | |
| 2.26 | 5.89 | 5.06 | 13.08 | -8.66 | 226.46 | -76.07 | 100.22 | 0.9760 | -270.9 | -54.7 | |
| 1.90 | -1.00 | 3.94 | -1.00 | -6.82 | 227.22 | -75.31 | 98.45 | 0.9721 | 128.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 2.27 | -8.44 | 226.21 | -76.32 | 99.96 | 0.9768 | -291.0 | -308.9 | |
| 0.72 | 6.07 | 1.57 | 13.01 | -6.39 | 226.54 | -75.99 | 97.92 | 0.9745 | 205.8 | 137.3 | |
| 0.00 | 0.27 | 0.00 | 0.58 | -6.16 | 226.64 | -75.89 | 97.70 | 0.9740 | 320.0 | 293.7 | |
| 0.00 | 1.63 | 0.00 | 3.52 | -5.83 | 226.53 | -76.00 | 97.35 | 0.9743 | 205.0 | 262.7 | |
| 7.43 | 51.90 | 17.94 | 128.44 | -7.22 | 225.30 | -77.23 | 98.60 | 0.9795 | 13.5 | -196.0 | |
| 10.51 | 21.11 | 22.70 | 45.16 | -4.65 | 226.33 | -76.19 | 96.12 | 0.9745 | -291.1 | -268.0 | |
| 2.36 | 12.68 | 5.55 | 29.71 | -5.76 | 225.35 | -77.18 | 97.13 | 0.9786 | -346.8 | -187.3 | |
| 0.00 | 0.54 | 0.00 | 1.63 | -9.09 | 223.01 | -79.52 | 100.20 | 0.9873 | -104.0 | -139.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
