SDO HMI 2014-07-29 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.15 | 0.00 | 9.59 | 11.67 | 258.95 | -43.03 | 78.63 | 0.6838 | 363.4 | 328.4 | |
|
previous
or next observation for the same group /

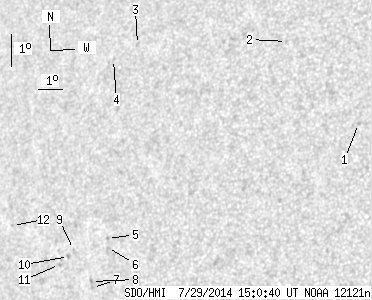

back to the solar disc SDO HMI 2014-07-29 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.93 | 14.60 | 267.97 | -34.01 | 72.29 | 0.5704 | -775.0 | -605.5 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.97 | 264.68 | -37.30 | 69.52 | 0.6210 | -589.0 | -514.5 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 16.50 | 258.56 | -43.42 | 71.92 | 0.6955 | 378.0 | 434.1 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 15.98 | 257.65 | -44.33 | 72.86 | 0.7053 | 599.0 | 500.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 10.50 | 258.62 | -43.36 | 80.58 | 0.6866 | 703.0 | 595.3 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 10.23 | 258.67 | -43.31 | 80.98 | 0.6858 | 778.0 | 621.7 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 8.97 | 258.23 | -43.75 | 82.83 | 0.6907 | 443.0 | 391.0 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 9.15 | 258.16 | -43.82 | 82.57 | 0.6917 | 608.0 | 508.0 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 10.07 | 257.22 | -44.75 | 81.29 | 0.7036 | 538.0 | 451.0 | |
| 0.00 | 1.90 | 0.00 | 1.33 | 9.85 | 257.05 | -44.93 | 81.63 | 0.7056 | 703.0 | 548.1 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 9.58 | 256.70 | -45.28 | 82.02 | 0.7098 | 502.0 | 468.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 10.62 | 254.38 | -47.59 | 80.69 | 0.7377 | 473.0 | 413.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
