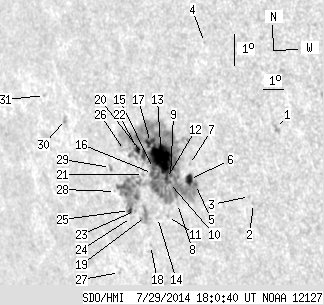

SDO HMI 2014-07-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.83 | 406.39 | 52.92 | 334.33 | -8.21 | 249.29 | -51.03 | 104.77 | 0.7978 | 508.2 | 63.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.53 | 0.00 | 2.56 | -6.68 | 254.95 | -45.37 | 104.56 | 0.7326 | 671.0 | 551.8 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -9.11 | 253.56 | -46.75 | 107.26 | 0.7554 | 502.0 | 468.9 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -8.91 | 253.42 | -46.89 | 106.95 | 0.7563 | 309.0 | 285.8 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -4.23 | 251.97 | -48.35 | 100.48 | 0.7601 | 379.0 | 336.4 | |
| 1.36 | 365.07 | 1.08 | 299.82 | -8.71 | 250.95 | -49.36 | 105.88 | 0.7821 | 882.2 | 94.7 | |
| 6.16 | -5.00 | 4.90 | -5.00 | -8.57 | 250.69 | -49.62 | 105.63 | 0.7845 | 704.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -8.10 | 250.77 | -49.54 | 105.06 | 0.7823 | 665.0 | 510.2 | |
| 0.00 | 1.54 | 0.00 | 1.25 | -9.38 | 249.96 | -50.36 | 106.39 | 0.7942 | -596.0 | -435.6 | |
| 0.27 | -5.00 | 0.22 | -5.00 | -8.52 | 249.78 | -50.53 | 105.28 | 0.7937 | 528.7 | 999999 | |
| 0.27 | -5.00 | 0.22 | -5.00 | -8.74 | 249.69 | -50.62 | 105.53 | 0.7952 | 260.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -9.83 | 249.37 | -50.94 | 106.76 | 0.8013 | -581.0 | -483.6 | |
| 0.27 | -5.00 | 0.22 | -5.00 | -8.63 | 249.57 | -50.75 | 105.35 | 0.7961 | 356.0 | 999999 | |
| 39.66 | -5.00 | 32.29 | -5.00 | -8.01 | 249.44 | -50.88 | 104.56 | 0.7959 | 899.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.13 | -9.91 | 248.86 | -51.45 | 106.69 | 0.8065 | -388.0 | -342.5 | |
| 1.00 | -5.00 | 0.82 | -5.00 | -8.36 | 248.98 | -51.34 | 104.85 | 0.8014 | 162.2 | 999999 | |
| 1.72 | -5.00 | 1.42 | -5.00 | -8.52 | 248.90 | -51.42 | 105.03 | 0.8026 | -269.5 | 999999 | |
| 5.07 | -5.00 | 4.16 | -5.00 | -7.55 | 248.97 | -51.34 | 103.86 | 0.7995 | 639.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -10.83 | 248.29 | -52.02 | 107.62 | 0.8145 | -625.0 | -568.0 | |
| 0.00 | 12.95 | 0.00 | 10.95 | -9.92 | 248.25 | -52.06 | 106.52 | 0.8125 | -818.0 | -641.2 | |
| 3.98 | -5.00 | 3.31 | -5.00 | -7.96 | 248.56 | -51.76 | 104.24 | 0.8047 | 484.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -8.59 | 248.44 | -51.88 | 104.98 | 0.8074 | 247.0 | 182.3 | |
| 3.08 | -5.00 | 2.57 | -5.00 | -7.82 | 248.28 | -52.03 | 104.00 | 0.8072 | 471.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -9.77 | 247.78 | -52.53 | 106.20 | 0.8167 | -601.0 | -592.7 | |
| 0.00 | 1.81 | 0.00 | 1.56 | -10.01 | 247.52 | -52.79 | 106.41 | 0.8198 | 112.0 | -9.4 | |
| 1.99 | -5.00 | 1.71 | -5.00 | -9.79 | 247.47 | -52.85 | 106.14 | 0.8198 | -653.3 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.84 | -7.91 | 247.61 | -52.71 | 103.92 | 0.8140 | -63.0 | 3.9 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -11.83 | 246.41 | -53.90 | 108.21 | 0.8347 | -377.0 | -307.3 | |
| 0.00 | 0.81 | 0.00 | 0.71 | -9.25 | 246.87 | -53.45 | 105.31 | 0.8242 | -335.0 | -391.2 | |
| 0.00 | 2.63 | 0.00 | 2.28 | -8.50 | 246.77 | -53.55 | 104.41 | 0.8235 | 475.0 | 365.9 | |
| 0.00 | 3.35 | 0.00 | 3.05 | -7.18 | 244.63 | -55.69 | 102.31 | 0.8409 | 367.0 | 282.0 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -6.52 | 243.58 | -56.73 | 101.30 | 0.8492 | -209.0 | -249.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
