SDO HMI 2014-07-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.70 | 0.00 | 5.68 | 9.74 | 258.83 | -40.37 | 80.92 | 0.6470 | 228.2 | 250.7 | |
|
previous
or next observation for the same group /

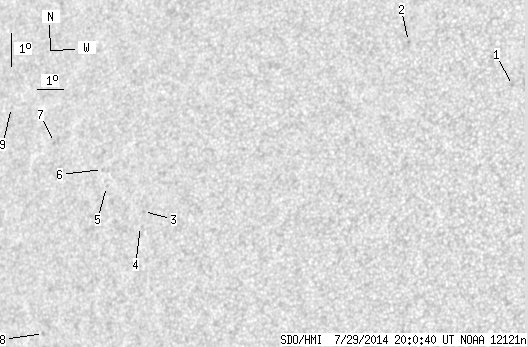

back to the solar disc SDO HMI 2014-07-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.41 | 271.81 | -27.40 | 71.86 | 0.4729 | -673.0 | -492.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 14.59 | 267.90 | -31.31 | 71.31 | 0.5329 | -740.0 | -601.6 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 8.85 | 258.53 | -40.68 | 82.92 | 0.6512 | 643.0 | 548.7 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 8.39 | 258.47 | -40.74 | 83.63 | 0.6519 | 372.0 | 375.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 9.51 | 256.91 | -42.30 | 82.00 | 0.6725 | 535.0 | 413.0 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 10.02 | 256.66 | -42.54 | 81.26 | 0.6760 | 589.0 | 466.8 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 10.70 | 254.48 | -44.72 | 80.42 | 0.7035 | 570.0 | 523.3 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 4.88 | 254.78 | -44.42 | 88.75 | 0.6999 | 547.0 | 472.0 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 11.64 | 252.37 | -46.83 | 79.27 | 0.7294 | 211.0 | 229.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
