SDO HMI 2014-07-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.50 | 437.75 | 64.54 | 351.92 | -8.44 | 249.11 | -50.09 | 105.33 | 0.7888 | 405.6 | 58.5 | |
|
previous
or next observation for the same group /

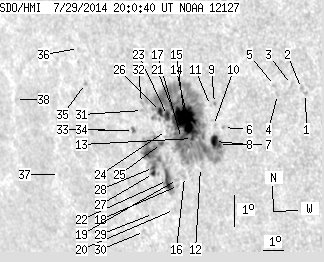

back to the solar disc SDO HMI 2014-07-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.16 | -6.77 | 255.04 | -44.16 | 105.11 | 0.7189 | 757.0 | 631.8 | |
| 0.00 | 1.72 | 0.00 | 1.22 | -6.62 | 254.89 | -44.32 | 104.86 | 0.7203 | 608.0 | 423.5 | |
| 0.00 | 2.08 | 0.00 | 1.49 | -6.53 | 254.47 | -44.74 | 104.59 | 0.7249 | 405.0 | 228.1 | |
| 0.00 | 1.72 | 0.00 | 1.25 | -6.89 | 253.81 | -45.39 | 104.84 | 0.7335 | 238.0 | 233.3 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -6.61 | 253.71 | -45.49 | 104.45 | 0.7338 | 261.0 | 312.9 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -8.10 | 251.21 | -47.99 | 105.56 | 0.7659 | 588.0 | 528.7 | |
| 2.08 | 318.51 | 1.61 | 253.61 | -8.66 | 250.89 | -48.32 | 106.16 | 0.7710 | 864.5 | 217.4 | |
| 5.98 | -7.00 | 4.64 | -7.00 | -8.57 | 250.71 | -48.49 | 106.00 | 0.7726 | 794.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -7.37 | 250.91 | -48.30 | 104.54 | 0.7672 | -277.0 | -140.4 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -8.07 | 250.75 | -48.45 | 105.38 | 0.7708 | 620.0 | 597.8 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -7.45 | 250.71 | -48.49 | 104.58 | 0.7695 | 225.0 | 192.2 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -9.45 | 249.89 | -49.31 | 106.82 | 0.7836 | -505.0 | -439.2 | |
| 1.36 | -7.00 | 1.08 | -7.00 | -8.56 | 249.68 | -49.52 | 105.65 | 0.7834 | 428.3 | 999999 | |
| 11.68 | -7.00 | 9.27 | -7.00 | -8.22 | 249.60 | -49.61 | 105.20 | 0.7834 | 844.0 | 999999 | |
| 30.78 | -7.00 | 24.48 | -7.00 | -7.89 | 249.41 | -49.79 | 104.74 | 0.7844 | 984.5 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.69 | -9.80 | 249.05 | -50.15 | 106.97 | 0.7932 | -287.0 | -277.3 | |
| 1.81 | -7.00 | 1.45 | -7.00 | -8.60 | 249.15 | -50.06 | 105.53 | 0.7891 | -261.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -10.11 | 248.70 | -50.51 | 107.24 | 0.7977 | -326.0 | -316.9 | |
| 0.00 | 1.90 | 0.00 | 1.55 | -9.92 | 248.69 | -50.52 | 107.01 | 0.7973 | -477.0 | -391.7 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -10.89 | 248.32 | -50.89 | 108.06 | 0.8036 | -641.0 | -506.4 | |
| 2.90 | -7.00 | 2.33 | -7.00 | -7.62 | 248.83 | -50.37 | 104.24 | 0.7898 | 663.6 | 999999 | |
| 9.42 | 83.66 | 7.78 | 69.48 | -9.99 | 248.18 | -51.02 | 106.93 | 0.8025 | -747.6 | -460.5 | |
| 5.07 | -7.00 | 4.11 | -7.00 | -7.92 | 248.59 | -50.62 | 104.53 | 0.7931 | 526.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -8.40 | 248.45 | -50.75 | 105.08 | 0.7956 | 218.0 | 114.8 | |
| 1.63 | -22.00 | 1.34 | -22.00 | -8.83 | 248.13 | -51.08 | 105.51 | 0.8000 | 307.8 | 999999 | |
| 3.71 | -7.00 | 3.03 | -7.00 | -7.82 | 248.26 | -50.94 | 104.32 | 0.7961 | 531.1 | 999999 | |
| 1.81 | -22.00 | 1.52 | -22.00 | -9.82 | 247.52 | -51.68 | 106.52 | 0.8086 | -630.5 | 999999 | |
| 1.18 | -22.00 | 0.98 | -22.00 | -9.63 | 247.56 | -51.64 | 106.30 | 0.8077 | -814.5 | 999999 | |
| 0.00 | 2.35 | 0.00 | 2.00 | -11.10 | 247.21 | -51.99 | 107.96 | 0.8149 | -314.0 | -299.9 | |
| 0.00 | 2.26 | 0.00 | 1.96 | -11.72 | 246.59 | -52.61 | 108.49 | 0.8225 | -367.0 | -362.3 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -7.86 | 247.37 | -51.84 | 104.11 | 0.8053 | -349.0 | -244.7 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -7.64 | 247.35 | -51.85 | 103.84 | 0.8049 | -181.0 | -176.7 | |
| 1.09 | 2.44 | 0.92 | 2.07 | -8.53 | 246.79 | -52.42 | 104.76 | 0.8126 | 468.5 | 388.5 | |
| 0.00 | 1.45 | 0.00 | 1.23 | -8.55 | 246.53 | -52.68 | 104.71 | 0.8152 | 239.0 | 234.1 | |
| 0.00 | 1.45 | 0.00 | 1.28 | -7.24 | 244.53 | -54.67 | 102.64 | 0.8315 | 427.0 | 245.8 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -6.17 | 244.34 | -54.86 | 101.32 | 0.8313 | -66.0 | -120.0 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -10.26 | 242.41 | -56.80 | 105.60 | 0.8569 | -304.0 | -250.6 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -8.08 | 240.41 | -58.79 | 102.64 | 0.8698 | -251.0 | -261.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
