SDO HMI 2014-07-29 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.12 | 43.37 | 19.22 | 51.55 | -18.38 | 237.00 | -61.65 | 113.20 | 0.9102 | -259.8 | -14.7 | |
|
previous
or next observation for the same group /

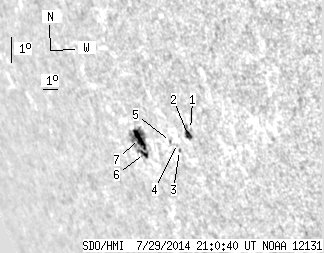

back to the solar disc SDO HMI 2014-07-29 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.45 | -17.76 | 239.97 | -58.68 | 113.39 | 0.8883 | 578.0 | 461.0 | |
| 3.08 | 6.79 | 3.33 | 7.33 | -17.97 | 239.73 | -58.92 | 113.55 | 0.8906 | 503.5 | 306.6 | |
| 0.00 | 1.09 | 0.00 | 1.21 | -18.54 | 238.83 | -59.82 | 113.89 | 0.8982 | 360.0 | 297.7 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -18.31 | 238.84 | -59.81 | 113.65 | 0.8976 | 130.0 | 211.2 | |
| 0.00 | 0.91 | 0.00 | 1.02 | -18.29 | 238.40 | -60.25 | 113.49 | 0.9006 | 242.0 | 173.7 | |
| 2.72 | 32.68 | 3.32 | 39.93 | -18.87 | 236.29 | -62.36 | 113.51 | 0.9159 | -427.4 | -126.5 | |
| 10.32 | -6.00 | 12.57 | -6.00 | -18.38 | 236.26 | -62.39 | 112.99 | 0.9152 | -604.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
