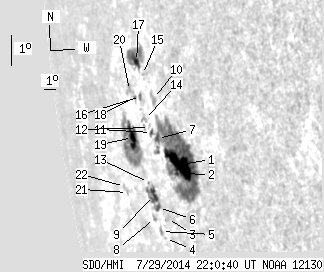

SDO HMI 2014-07-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.46 | 343.23 | 101.57 | 536.01 | -7.28 | 227.66 | -70.43 | 99.64 | 0.9490 | 341.0 | 61.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.60 | 191.31 | 46.64 | 274.88 | -7.61 | 229.48 | -68.62 | 100.26 | 0.9395 | 710.4 | 271.1 | |
| 1.99 | -1.00 | 2.89 | -1.00 | -7.92 | 229.20 | -68.90 | 100.54 | 0.9414 | 190.7 | 999999 | |
| 0.00 | 3.53 | 0.00 | 5.60 | -9.46 | 227.64 | -70.45 | 101.90 | 0.9513 | -31.0 | 49.6 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -10.14 | 227.11 | -70.99 | 102.51 | 0.9546 | -431.0 | -380.3 | |
| 0.00 | 3.08 | 0.00 | 5.13 | -9.95 | 226.83 | -71.27 | 102.27 | 0.9559 | -226.0 | -250.1 | |
| 2.44 | 20.73 | 4.03 | 34.62 | -9.19 | 226.92 | -71.18 | 101.50 | 0.9548 | 200.0 | -176.0 | |
| 2.99 | -1.00 | 4.62 | -1.00 | -6.96 | 227.75 | -70.34 | 99.31 | 0.9487 | 307.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 3.70 | -9.59 | 226.32 | -71.77 | 101.82 | 0.9581 | -561.0 | -480.6 | |
| 7.88 | -6.00 | 13.13 | -6.00 | -8.84 | 226.60 | -71.50 | 101.09 | 0.9562 | -51.7 | 999999 | |
| 0.00 | 6.34 | 0.00 | 9.72 | -5.72 | 227.78 | -70.32 | 98.02 | 0.9475 | 28.0 | -22.5 | |
| 1.18 | 3.35 | 1.87 | 5.31 | -6.82 | 227.24 | -70.86 | 99.09 | 0.9513 | 309.4 | 210.8 | |
| 0.00 | 1.72 | 0.00 | 2.75 | -6.68 | 227.10 | -71.00 | 98.92 | 0.9519 | 275.0 | 210.1 | |
| 0.00 | 1.09 | 0.00 | 1.84 | -8.47 | 226.28 | -71.82 | 100.65 | 0.9575 | -19.0 | -7.1 | |
| 0.00 | 2.90 | 0.00 | 4.73 | -6.47 | 226.69 | -71.41 | 98.64 | 0.9539 | 375.0 | 237.6 | |
| 0.00 | 0.81 | 0.00 | 1.29 | -5.06 | 226.93 | -71.17 | 97.21 | 0.9516 | -356.0 | -310.7 | |
| 1.00 | 2.81 | 1.63 | 4.60 | -5.78 | 226.53 | -71.57 | 97.90 | 0.9542 | 435.8 | 323.6 | |
| 4.07 | 28.70 | 6.65 | 46.86 | -4.70 | 226.44 | -71.66 | 96.77 | 0.9539 | 20.7 | -298.2 | |
| 0.54 | 1.90 | 0.92 | 3.21 | -5.87 | 225.90 | -72.20 | 97.90 | 0.9575 | 175.2 | 140.6 | |
| 10.77 | 63.38 | 19.19 | 114.58 | -7.17 | 225.20 | -72.89 | 99.15 | 0.9617 | 194.8 | -157.4 | |
| 0.00 | 5.79 | 0.00 | 10.04 | -5.69 | 225.44 | -72.65 | 97.66 | 0.9596 | -277.0 | -157.0 | |
| 0.00 | 1.54 | 0.00 | 3.05 | -9.02 | 223.73 | -74.37 | 100.84 | 0.9695 | -459.0 | -429.8 | |
| 0.00 | 1.81 | 0.00 | 3.66 | -8.86 | 223.47 | -74.63 | 100.63 | 0.9704 | -151.0 | -102.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
