SDO HMI 2014-07-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.95 | 47.62 | 17.46 | 55.44 | -18.39 | 237.03 | -61.07 | 113.37 | 0.9063 | -184.4 | -94.9 | |
|
previous
or next observation for the same group /

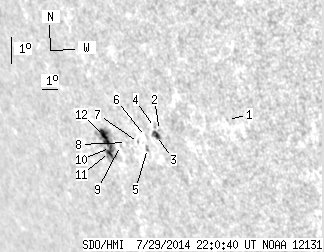

back to the solar disc SDO HMI 2014-07-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.25 | -17.08 | 244.30 | -53.79 | 114.26 | 0.8480 | 384.0 | 420.0 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -17.80 | 240.07 | -58.03 | 113.63 | 0.8836 | 427.0 | 474.3 | |
| 2.99 | 5.61 | 3.17 | 5.96 | -17.98 | 239.79 | -58.31 | 113.75 | 0.8861 | 570.4 | 333.5 | |
| 0.00 | 1.18 | 0.00 | 1.24 | -17.72 | 239.80 | -58.29 | 113.47 | 0.8854 | 504.0 | 470.5 | |
| 0.00 | 2.35 | 0.00 | 2.58 | -18.48 | 238.95 | -59.14 | 114.03 | 0.8933 | 447.0 | 347.6 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -18.08 | 239.05 | -59.05 | 113.63 | 0.8917 | 462.0 | 368.5 | |
| 0.00 | 0.81 | 0.00 | 0.90 | -18.33 | 238.47 | -59.63 | 113.72 | 0.8964 | 105.0 | 80.1 | |
| 0.00 | 1.18 | 0.00 | 1.34 | -18.40 | 237.65 | -60.45 | 113.56 | 0.9023 | -192.0 | -172.6 | |
| 0.00 | 1.18 | 0.00 | 1.36 | -18.54 | 237.17 | -60.93 | 113.57 | 0.9058 | -528.0 | -464.4 | |
| 1.18 | 33.86 | 1.40 | 40.54 | -18.67 | 236.41 | -61.69 | 113.49 | 0.9111 | -689.4 | -222.0 | |
| 2.63 | -10.00 | 3.15 | -10.00 | -18.85 | 236.23 | -61.87 | 113.63 | 0.9127 | -473.4 | 999999 | |
| 8.15 | -10.00 | 9.74 | -10.00 | -18.33 | 236.22 | -61.88 | 113.08 | 0.9118 | -580.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
