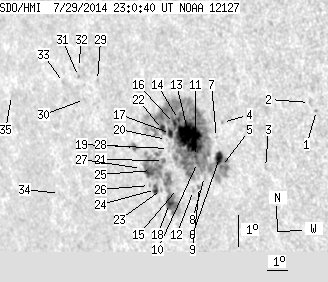

SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.88 | 461.28 | 73.78 | 359.00 | -8.36 | 248.96 | -48.58 | 105.71 | 0.7729 | 408.2 | 90.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.81 | -6.76 | 255.19 | -42.35 | 105.77 | 0.6975 | 615.0 | 529.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -6.53 | 254.93 | -42.62 | 105.35 | 0.6999 | 558.0 | 520.5 | |
| 0.00 | 1.54 | 0.00 | 1.12 | -8.70 | 252.77 | -44.78 | 107.48 | 0.7322 | 584.0 | 472.4 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -7.42 | 251.06 | -46.49 | 105.19 | 0.7475 | -142.0 | -161.2 | |
| 0.72 | 337.65 | 0.54 | 259.97 | -8.81 | 250.80 | -46.75 | 106.90 | 0.7545 | 729.0 | 247.2 | |
| 7.15 | -5.00 | 5.38 | -5.00 | -8.53 | 250.75 | -46.79 | 106.53 | 0.7541 | 840.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -7.91 | 250.72 | -46.83 | 105.72 | 0.7527 | 642.0 | 565.8 | |
| 0.00 | 2.17 | 0.00 | 1.66 | -9.19 | 249.96 | -47.59 | 107.09 | 0.7647 | -114.0 | -172.7 | |
| 0.00 | 2.63 | 0.00 | 2.03 | -9.52 | 249.67 | -47.88 | 107.41 | 0.7689 | 561.0 | 321.6 | |
| 0.81 | -5.00 | 0.63 | -5.00 | -8.77 | 249.71 | -47.83 | 106.47 | 0.7661 | 209.6 | 999999 | |
| 1.00 | -5.00 | 0.76 | -5.00 | -8.58 | 249.65 | -47.89 | 106.22 | 0.7663 | 379.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.41 | -9.67 | 249.36 | -48.18 | 107.49 | 0.7726 | 223.0 | 48.4 | |
| 51.16 | -5.00 | 39.31 | -5.00 | -8.00 | 249.47 | -48.07 | 105.43 | 0.7666 | 950.4 | 999999 | |
| 1.36 | -5.00 | 1.05 | -5.00 | -7.47 | 249.04 | -48.50 | 104.62 | 0.7697 | 634.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -9.66 | 248.61 | -48.93 | 107.22 | 0.7804 | -403.0 | -356.7 | |
| 2.17 | -5.00 | 1.69 | -5.00 | -7.61 | 248.83 | -48.71 | 104.73 | 0.7723 | 730.7 | 999999 | |
| 3.35 | -5.00 | 2.62 | -5.00 | -7.94 | 248.59 | -48.95 | 105.07 | 0.7758 | 554.5 | 999999 | |
| 5.34 | 89.91 | 4.27 | 71.92 | -10.17 | 248.13 | -49.42 | 107.69 | 0.7869 | -946.3 | -468.1 | |
| 0.00 | 1.72 | 0.00 | 1.35 | -8.42 | 248.42 | -49.13 | 105.62 | 0.7789 | 289.0 | 183.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -8.15 | 248.37 | -49.17 | 105.26 | 0.7787 | 191.0 | 182.7 | |
| 1.09 | -18.00 | 0.86 | -18.00 | -8.82 | 248.11 | -49.44 | 106.02 | 0.7832 | 409.0 | 999999 | |
| 3.62 | -5.00 | 2.85 | -5.00 | -7.84 | 248.23 | -49.31 | 104.84 | 0.7793 | 555.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -9.75 | 247.83 | -49.71 | 107.08 | 0.7887 | -765.0 | -639.1 | |
| 3.53 | -18.00 | 2.85 | -18.00 | -9.78 | 247.54 | -50.01 | 107.01 | 0.7918 | -675.0 | 999999 | |
| 11.68 | -18.00 | 9.42 | -18.00 | -9.18 | 247.46 | -50.08 | 106.26 | 0.7909 | -536.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -9.67 | 247.27 | -50.28 | 106.79 | 0.7942 | -488.0 | -446.5 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -9.16 | 246.98 | -50.56 | 106.08 | 0.7957 | -192.0 | -342.4 | |
| 1.90 | 5.80 | 1.55 | 4.73 | -8.52 | 246.77 | -50.78 | 105.23 | 0.7963 | 535.9 | 310.2 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -6.55 | 245.26 | -52.28 | 102.41 | 0.8068 | 455.0 | 370.4 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -7.20 | 244.50 | -53.05 | 103.00 | 0.8158 | 264.0 | 221.5 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -6.50 | 244.30 | -53.24 | 102.11 | 0.8163 | -292.0 | -148.6 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -6.22 | 244.35 | -53.20 | 101.78 | 0.8153 | -340.0 | -280.4 | |
| 0.00 | 2.54 | 0.00 | 2.21 | -6.75 | 243.48 | -54.06 | 102.21 | 0.8248 | -178.0 | -230.6 | |
| 0.00 | 1.18 | 0.00 | 1.07 | -10.30 | 242.51 | -55.04 | 106.12 | 0.8414 | -162.0 | -192.6 | |
| 0.00 | 1.45 | 0.00 | 1.37 | -7.40 | 240.53 | -57.02 | 102.27 | 0.8534 | -414.0 | -311.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
