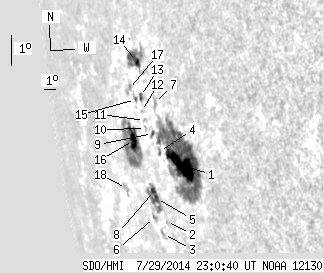

SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.31 | 351.68 | 85.50 | 534.42 | -7.34 | 227.72 | -69.82 | 99.80 | 0.9457 | 450.2 | 59.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.04 | 199.57 | 48.78 | 279.37 | -7.62 | 229.50 | -68.04 | 100.37 | 0.9361 | 730.2 | 275.9 | |
| 0.00 | 0.54 | 0.00 | 0.85 | -9.56 | 227.40 | -70.14 | 102.05 | 0.9498 | 211.0 | 304.3 | |
| 0.00 | 3.89 | 0.00 | 6.26 | -10.01 | 226.90 | -70.65 | 102.44 | 0.9528 | -141.0 | -198.0 | |
| 0.00 | 2.99 | 0.00 | 4.52 | -7.35 | 227.69 | -69.86 | 99.79 | 0.9463 | 154.0 | 62.9 | |
| 2.99 | 24.09 | 4.79 | 39.14 | -8.90 | 226.78 | -70.77 | 101.26 | 0.9525 | 266.3 | -176.5 | |
| 0.63 | 3.62 | 1.05 | 6.00 | -9.54 | 226.27 | -71.27 | 101.85 | 0.9556 | -511.0 | -470.2 | |
| 0.00 | 4.35 | 0.00 | 6.49 | -5.86 | 227.72 | -69.82 | 98.24 | 0.9449 | 35.0 | 53.5 | |
| 2.81 | -5.00 | 4.54 | -5.00 | -8.70 | 226.58 | -70.96 | 101.03 | 0.9533 | 96.8 | 999999 | |
| 1.09 | -1.00 | 1.68 | -1.00 | -6.83 | 227.23 | -70.31 | 99.18 | 0.9484 | 288.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 3.02 | -6.74 | 226.61 | -70.94 | 98.99 | 0.9516 | 141.0 | 95.8 | |
| 0.00 | 1.27 | 0.00 | 2.02 | -6.49 | 226.60 | -70.95 | 98.73 | 0.9515 | 308.0 | 232.6 | |
| 0.00 | 1.09 | 0.00 | 1.74 | -6.23 | 226.40 | -71.15 | 98.43 | 0.9524 | 324.0 | 270.1 | |
| 1.81 | 3.26 | 2.88 | 5.18 | -5.76 | 226.45 | -71.09 | 97.95 | 0.9518 | 342.9 | 255.8 | |
| 3.26 | 28.79 | 5.16 | 45.79 | -4.71 | 226.45 | -71.09 | 96.85 | 0.9510 | -2.0 | -294.7 | |
| 0.72 | 2.44 | 1.19 | 4.01 | -5.90 | 225.92 | -71.62 | 98.02 | 0.9546 | 158.9 | 115.7 | |
| 8.96 | 63.38 | 15.43 | 111.00 | -7.24 | 225.23 | -72.31 | 99.31 | 0.9590 | 244.7 | -141.7 | |
| 0.00 | 4.98 | 0.00 | 8.41 | -5.65 | 225.30 | -72.25 | 97.68 | 0.9576 | -222.0 | -212.4 | |
| 0.00 | 5.52 | 0.00 | 10.62 | -8.88 | 223.70 | -73.85 | 100.77 | 0.9672 | -490.0 | -306.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
