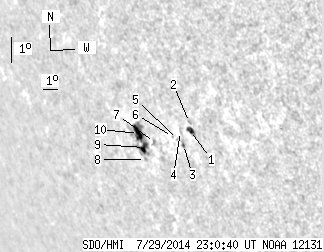

SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.12 | 49.17 | 18.55 | 56.23 | -18.46 | 237.04 | -60.50 | 113.62 | 0.9026 | -252.7 | -91.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 4.98 | 2.93 | 5.19 | -17.97 | 239.78 | -57.76 | 113.91 | 0.8820 | 554.2 | 363.2 | |
| 0.00 | 1.54 | 0.00 | 1.60 | -17.70 | 239.86 | -57.68 | 113.64 | 0.8808 | 485.0 | 407.9 | |
| 0.00 | 2.44 | 0.00 | 2.62 | -18.49 | 239.07 | -58.47 | 114.25 | 0.8885 | 370.0 | 320.6 | |
| 0.00 | 1.54 | 0.00 | 1.64 | -18.06 | 239.12 | -58.42 | 113.80 | 0.8871 | 238.0 | 265.9 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -18.35 | 238.78 | -58.77 | 114.01 | 0.8903 | 252.0 | 238.3 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -18.27 | 238.51 | -59.04 | 113.84 | 0.8921 | 237.0 | 145.7 | |
| 0.00 | 2.26 | 0.00 | 2.58 | -18.59 | 237.17 | -60.37 | 113.78 | 0.9022 | -468.0 | -440.1 | |
| 0.00 | 1.63 | 0.00 | 1.93 | -19.24 | 236.17 | -61.38 | 114.18 | 0.9102 | -140.0 | -152.7 | |
| 4.89 | 32.96 | 5.74 | 38.71 | -18.82 | 236.36 | -61.18 | 113.80 | 0.9081 | -586.6 | -223.4 | |
| 8.42 | -9.00 | 9.88 | -9.00 | -18.37 | 236.24 | -61.30 | 113.29 | 0.9080 | -575.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
