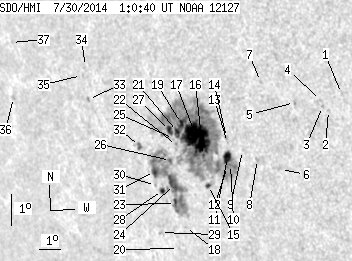

SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.50 | 490.25 | 80.15 | 372.76 | -8.42 | 249.10 | -47.34 | 106.20 | 0.7596 | 448.9 | 84.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.42 | -6.20 | 255.87 | -40.58 | 105.68 | 0.6739 | 506.0 | 446.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -6.77 | 255.28 | -41.16 | 106.25 | 0.6831 | 619.0 | 515.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -6.66 | 255.05 | -41.40 | 106.01 | 0.6856 | 577.0 | 388.0 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -6.47 | 254.98 | -41.46 | 105.73 | 0.6857 | 586.0 | 456.3 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -6.61 | 253.89 | -42.55 | 105.50 | 0.6994 | 546.0 | 444.1 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -8.76 | 253.03 | -43.41 | 108.09 | 0.7169 | 56.0 | 59.9 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -6.05 | 252.52 | -43.92 | 104.24 | 0.7140 | 502.0 | 507.7 | |
| 0.00 | 2.08 | 0.00 | 1.50 | -8.51 | 252.08 | -44.36 | 107.39 | 0.7269 | -260.0 | -221.2 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -8.27 | 251.46 | -44.98 | 106.85 | 0.7332 | 781.0 | 624.1 | |
| 0.27 | 462.25 | 0.20 | 351.20 | -8.75 | 250.86 | -45.58 | 107.25 | 0.7415 | 812.0 | 84.8 | |
| 7.06 | -10.00 | 5.20 | -10.00 | -8.54 | 250.76 | -45.68 | 106.94 | 0.7419 | 854.6 | 999999 | |
| 0.27 | -10.00 | 0.20 | -10.00 | -8.83 | 250.72 | -45.73 | 107.30 | 0.7433 | 647.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -8.07 | 250.83 | -45.61 | 106.35 | 0.7396 | 633.0 | 542.1 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -7.91 | 250.81 | -45.63 | 106.14 | 0.7394 | 719.0 | 627.6 | |
| 1.45 | -10.00 | 1.09 | -10.00 | -9.49 | 249.75 | -46.69 | 107.80 | 0.7560 | 361.1 | 999999 | |
| 1.18 | -10.00 | 0.88 | -10.00 | -8.55 | 249.69 | -46.75 | 106.58 | 0.7538 | 403.5 | 999999 | |
| 59.68 | -10.00 | 44.88 | -10.00 | -8.01 | 249.46 | -46.98 | 105.80 | 0.7547 | 945.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -10.91 | 248.41 | -48.03 | 109.10 | 0.7748 | -676.0 | -609.7 | |
| 3.08 | -10.00 | 2.34 | -10.00 | -7.62 | 248.83 | -47.61 | 105.09 | 0.7605 | 722.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -11.61 | 247.93 | -48.51 | 109.78 | 0.7821 | -484.0 | -408.1 | |
| 2.81 | -10.00 | 2.15 | -10.00 | -7.88 | 248.61 | -47.83 | 105.36 | 0.7636 | 595.9 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.81 | -8.33 | 248.49 | -47.95 | 105.89 | 0.7662 | 311.0 | 277.0 | |
| 2.99 | -10.00 | 2.34 | -10.00 | -10.18 | 248.10 | -48.34 | 108.08 | 0.7758 | -891.5 | 999999 | |
| 12.59 | -10.00 | 9.79 | -10.00 | -9.57 | 248.18 | -48.27 | 107.35 | 0.7732 | -561.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -8.12 | 248.39 | -48.05 | 105.59 | 0.7667 | 149.0 | 177.8 | |
| 1.45 | -10.00 | 1.12 | -10.00 | -8.83 | 248.13 | -48.31 | 106.40 | 0.7715 | 430.0 | 999999 | |
| 3.71 | -10.00 | 2.86 | -10.00 | -7.88 | 248.24 | -48.20 | 105.24 | 0.7676 | 538.6 | 999999 | |
| 2.35 | -10.00 | 1.86 | -10.00 | -9.81 | 247.57 | -48.87 | 107.43 | 0.7802 | -568.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.45 | -11.16 | 247.18 | -49.26 | 108.96 | 0.7883 | -547.0 | -463.8 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -9.67 | 247.26 | -49.18 | 107.17 | 0.7830 | -523.0 | -460.5 | |
| 4.71 | -10.00 | 3.72 | -10.00 | -9.23 | 247.30 | -49.14 | 106.63 | 0.7813 | -662.1 | 999999 | |
| 1.90 | 3.44 | 1.52 | 2.74 | -8.49 | 246.73 | -49.72 | 105.53 | 0.7853 | 507.3 | 363.4 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -7.20 | 244.45 | -51.99 | 103.29 | 0.8054 | 196.0 | 197.1 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -6.18 | 244.46 | -51.98 | 102.04 | 0.8031 | -24.0 | -3.5 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -6.47 | 244.22 | -52.23 | 102.35 | 0.8062 | -256.0 | -276.6 | |
| 0.00 | 2.17 | 0.00 | 2.00 | -7.46 | 240.47 | -55.98 | 102.59 | 0.8441 | -505.0 | -370.8 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -5.74 | 240.66 | -55.78 | 100.62 | 0.8392 | -193.0 | -172.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
