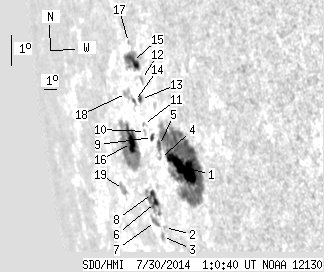

SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.66 | 345.62 | 97.47 | 497.68 | -7.39 | 227.71 | -68.74 | 100.02 | 0.9395 | 412.4 | 73.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.86 | 198.61 | 50.07 | 263.40 | -7.60 | 229.61 | -66.84 | 100.55 | 0.9286 | 790.1 | 295.8 | |
| 0.00 | 1.27 | 0.00 | 1.89 | -9.69 | 227.22 | -69.23 | 102.35 | 0.9449 | 120.0 | 160.4 | |
| 0.00 | 2.99 | 0.00 | 4.54 | -10.00 | 226.89 | -69.55 | 102.62 | 0.9470 | 137.0 | 37.3 | |
| 0.00 | 1.27 | 0.00 | 1.82 | -7.49 | 227.75 | -68.69 | 100.13 | 0.9398 | 70.0 | 30.2 | |
| 2.72 | -1.00 | 3.88 | -1.00 | -7.08 | 227.80 | -68.64 | 99.71 | 0.9391 | 396.8 | 999999 | |
| 3.17 | 21.74 | 4.81 | 33.35 | -8.95 | 226.74 | -69.70 | 101.50 | 0.9468 | 112.5 | -235.9 | |
| 0.00 | 6.34 | 0.00 | 9.84 | -9.57 | 226.46 | -69.98 | 102.10 | 0.9489 | -641.0 | -521.0 | |
| 2.45 | -6.00 | 3.74 | -6.00 | -8.68 | 226.59 | -69.85 | 101.19 | 0.9475 | 136.6 | 999999 | |
| 1.81 | 2.63 | 2.65 | 3.84 | -6.88 | 227.26 | -69.18 | 99.41 | 0.9421 | 247.4 | 168.0 | |
| 0.00 | 1.63 | 0.00 | 2.45 | -6.75 | 226.69 | -69.75 | 99.18 | 0.9452 | 260.0 | 166.8 | |
| 0.00 | 1.18 | 0.00 | 1.77 | -6.54 | 226.58 | -69.87 | 98.95 | 0.9457 | 268.0 | 239.9 | |
| 0.00 | 2.45 | 0.00 | 3.60 | -5.13 | 226.80 | -69.64 | 97.50 | 0.9433 | -204.0 | -150.2 | |
| 1.72 | 3.17 | 2.58 | 4.76 | -5.77 | 226.54 | -69.90 | 98.14 | 0.9453 | 400.1 | 272.2 | |
| 0.00 | 2.72 | 0.00 | 4.20 | -5.89 | 225.95 | -70.49 | 98.17 | 0.9486 | 215.0 | 171.1 | |
| 9.15 | 20.92 | 13.89 | 31.94 | -4.64 | 226.10 | -70.34 | 96.89 | 0.9468 | -190.4 | -271.2 | |
| 9.78 | 65.93 | 15.85 | 108.65 | -7.26 | 225.20 | -71.24 | 99.49 | 0.9536 | 286.5 | -136.4 | |
| 0.00 | 1.18 | 0.00 | 1.81 | -4.07 | 225.86 | -70.58 | 96.26 | 0.9478 | -398.0 | -336.6 | |
| 0.00 | 5.07 | 0.00 | 8.11 | -5.70 | 225.25 | -71.19 | 97.88 | 0.9522 | -281.0 | -227.5 | |
| 0.00 | 6.52 | 0.00 | 11.71 | -8.83 | 223.69 | -72.75 | 100.89 | 0.9622 | -553.0 | -318.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
