SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.23 | 42.03 | 14.56 | 46.11 | -18.50 | 237.20 | -59.24 | 114.04 | 0.8938 | -238.7 | -181.3 | |
|
previous
or next observation for the same group /

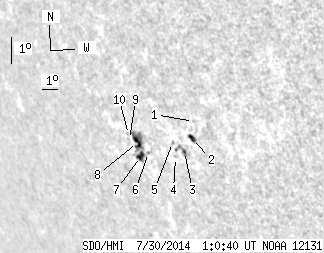

back to the solar disc SDO HMI 2014-07-30 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.90 | -17.40 | 240.25 | -56.19 | 113.80 | 0.8685 | 252.0 | 181.2 | |
| 2.72 | 4.17 | 2.74 | 4.20 | -17.99 | 239.91 | -56.53 | 114.33 | 0.8727 | 550.1 | 416.2 | |
| 0.82 | 6.70 | 0.84 | 6.96 | -18.48 | 239.18 | -57.26 | 114.63 | 0.8795 | 466.9 | 297.4 | |
| 0.00 | 0.72 | 0.00 | 0.77 | -18.73 | 238.50 | -57.94 | 114.69 | 0.8852 | -438.0 | -321.2 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -18.23 | 238.59 | -57.85 | 114.17 | 0.8833 | 167.0 | 101.1 | |
| 0.00 | 1.00 | 0.00 | 1.11 | -18.71 | 236.83 | -59.61 | 114.15 | 0.8972 | -637.0 | -605.5 | |
| 4.17 | 25.27 | 4.74 | 28.56 | -18.90 | 236.20 | -60.24 | 114.16 | 0.9020 | -538.3 | -446.2 | |
| 5.52 | -7.00 | 6.24 | -7.00 | -18.43 | 236.28 | -60.16 | 113.68 | 0.9004 | -647.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.52 | -18.38 | 235.79 | -60.65 | 113.48 | 0.9037 | 271.0 | 251.8 | |
| 0.00 | 1.54 | 0.00 | 1.76 | -18.21 | 235.82 | -60.62 | 113.31 | 0.9031 | 170.0 | 110.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
