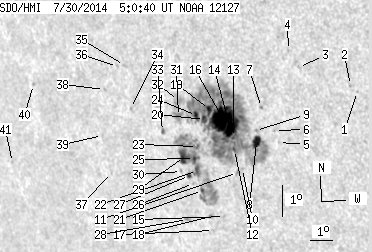

SDO HMI 2014-07-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.94 | 535.31 | 71.32 | 391.00 | -8.28 | 248.99 | -45.25 | 106.78 | 0.7362 | 435.8 | 81.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.48 | -6.65 | 255.14 | -39.11 | 106.96 | 0.6573 | 531.0 | 493.5 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -6.48 | 254.88 | -39.37 | 106.60 | 0.6600 | 574.0 | 458.4 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -6.06 | 252.82 | -41.43 | 105.16 | 0.6840 | 611.0 | 550.1 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -5.55 | 252.46 | -41.79 | 104.32 | 0.6868 | 623.0 | 560.8 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -8.47 | 251.71 | -42.54 | 108.07 | 0.7057 | 780.0 | 658.7 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -8.10 | 251.59 | -42.66 | 107.52 | 0.7058 | 526.0 | 494.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -7.41 | 251.13 | -43.11 | 106.41 | 0.7088 | -365.0 | -294.6 | |
| 7.52 | 485.55 | 5.32 | 353.66 | -8.50 | 250.77 | -43.47 | 107.74 | 0.7167 | 889.1 | 97.7 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -8.16 | 250.78 | -43.47 | 107.28 | 0.7154 | 677.0 | 542.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -9.40 | 250.03 | -44.21 | 108.64 | 0.7283 | -612.0 | -411.7 | |
| 0.00 | 1.99 | 0.00 | 1.44 | -9.54 | 249.79 | -44.45 | 108.73 | 0.7315 | 547.0 | 427.0 | |
| 1.45 | -8.00 | 1.05 | -8.00 | -8.82 | 249.78 | -44.47 | 107.78 | 0.7292 | 217.8 | 999999 | |
| 1.81 | -8.00 | 1.31 | -8.00 | -8.44 | 249.79 | -44.45 | 107.28 | 0.7278 | 511.8 | 999999 | |
| 16.49 | -8.00 | 11.87 | -8.00 | -8.17 | 249.71 | -44.54 | 106.89 | 0.7279 | 953.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -10.99 | 248.96 | -45.29 | 110.26 | 0.7459 | -721.0 | -633.2 | |
| 40.77 | -8.00 | 29.47 | -8.00 | -7.84 | 249.40 | -44.84 | 106.35 | 0.7303 | 1050.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -11.47 | 248.37 | -45.88 | 110.64 | 0.7540 | -356.0 | -337.1 | |
| 0.54 | 1.54 | 0.41 | 1.16 | -11.03 | 248.33 | -45.92 | 110.07 | 0.7529 | -716.8 | -656.5 | |
| 3.17 | -8.00 | 2.31 | -8.00 | -7.63 | 248.87 | -45.38 | 105.88 | 0.7358 | 754.6 | 999999 | |
| 3.53 | -8.00 | 2.59 | -8.00 | -7.96 | 248.60 | -45.65 | 106.22 | 0.7398 | 607.8 | 999999 | |
| 1.00 | -8.00 | 0.75 | -8.00 | -10.23 | 248.13 | -46.12 | 108.96 | 0.7523 | -936.3 | 999999 | |
| 3.08 | -8.00 | 2.30 | -8.00 | -9.60 | 248.02 | -46.23 | 108.13 | 0.7514 | -728.8 | 999999 | |
| 0.91 | -8.00 | 0.67 | -8.00 | -8.84 | 248.15 | -46.10 | 107.20 | 0.7475 | 391.3 | 999999 | |
| 3.17 | -8.00 | 2.34 | -8.00 | -7.86 | 248.26 | -45.99 | 105.97 | 0.7433 | 609.5 | 999999 | |
| 1.18 | -8.00 | 0.88 | -8.00 | -9.23 | 247.95 | -46.30 | 107.63 | 0.7510 | -1030.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -10.03 | 247.76 | -46.49 | 108.58 | 0.7556 | -588.0 | -523.3 | |
| 1.72 | -8.00 | 1.30 | -8.00 | -9.79 | 247.63 | -46.62 | 108.22 | 0.7563 | -688.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.60 | -11.21 | 247.25 | -47.00 | 109.86 | 0.7650 | -691.0 | -563.4 | |
| 10.69 | -8.00 | 8.06 | -8.00 | -9.20 | 247.51 | -46.74 | 107.43 | 0.7557 | -593.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -9.69 | 247.28 | -46.96 | 107.97 | 0.7597 | -397.0 | -348.0 | |
| 0.00 | 8.97 | 0.00 | 6.72 | -7.95 | 247.44 | -46.81 | 105.80 | 0.7527 | -241.0 | -67.8 | |
| 0.00 | 10.78 | 0.00 | 8.05 | -7.45 | 247.51 | -46.73 | 105.18 | 0.7504 | 41.0 | 6.3 | |
| 0.91 | 2.36 | 0.69 | 1.80 | -8.48 | 246.63 | -47.62 | 106.21 | 0.7631 | 559.0 | 472.7 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -7.87 | 245.24 | -49.01 | 104.98 | 0.7762 | -522.0 | -410.0 | |
| 0.00 | 1.81 | 0.00 | 1.41 | -6.53 | 245.16 | -49.09 | 103.28 | 0.7737 | 499.0 | 488.9 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -6.59 | 244.82 | -49.43 | 103.26 | 0.7775 | 189.0 | 162.5 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -9.97 | 243.94 | -50.31 | 107.17 | 0.7955 | -511.0 | -448.0 | |
| 0.00 | 1.27 | 0.00 | 1.01 | -7.36 | 244.08 | -50.16 | 104.01 | 0.7871 | -603.0 | -482.9 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -8.83 | 243.73 | -50.52 | 105.71 | 0.7945 | -366.0 | -355.7 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -7.49 | 240.51 | -53.74 | 103.19 | 0.8233 | -446.0 | -355.4 | |
| 0.00 | 1.00 | 0.00 | 0.92 | -10.07 | 238.81 | -55.44 | 105.76 | 0.8446 | -86.0 | -128.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
