SDO HMI 2014-07-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.74 | 389.43 | 99.42 | 508.76 | -7.41 | 227.72 | -66.53 | 100.43 | 0.9259 | 443.4 | 83.1 | |
|
previous
or next observation for the same group /

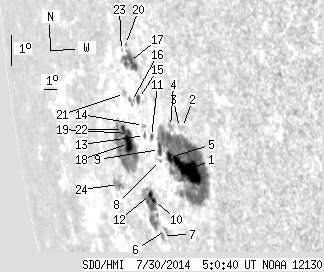

back to the solar disc SDO HMI 2014-07-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.15 | 215.64 | 43.39 | 261.00 | -7.68 | 229.84 | -64.40 | 101.08 | 0.9125 | 863.5 | 301.0 | |
| 0.00 | 0.82 | 0.00 | 0.97 | -6.35 | 229.76 | -64.48 | 99.63 | 0.9115 | 395.0 | 344.3 | |
| 0.00 | 1.09 | 0.00 | 1.31 | -6.37 | 229.54 | -64.71 | 99.61 | 0.9131 | 275.0 | 255.5 | |
| 0.00 | 3.17 | 0.00 | 3.92 | -6.40 | 228.87 | -65.37 | 99.53 | 0.9177 | 380.0 | 346.0 | |
| 4.08 | -1.00 | 5.14 | -1.00 | -7.39 | 228.53 | -65.72 | 100.54 | 0.9211 | 394.4 | 999999 | |
| 0.00 | 3.35 | 0.00 | 4.50 | -9.78 | 227.38 | -66.87 | 102.87 | 0.9312 | 440.0 | 252.9 | |
| 0.00 | 3.08 | 0.00 | 4.21 | -9.96 | 227.06 | -67.19 | 103.01 | 0.9333 | 3.0 | -71.8 | |
| 0.00 | 0.91 | 0.00 | 1.18 | -7.56 | 227.79 | -66.46 | 100.58 | 0.9261 | 119.0 | 35.6 | |
| 3.71 | -1.00 | 4.81 | -1.00 | -7.21 | 227.82 | -66.43 | 100.22 | 0.9256 | 358.0 | 999999 | |
| 2.54 | 34.88 | 3.48 | 48.51 | -8.90 | 226.77 | -67.48 | 101.83 | 0.9340 | 157.9 | -335.4 | |
| 0.72 | 2.54 | 0.96 | 3.35 | -6.85 | 227.29 | -66.95 | 99.75 | 0.9286 | 411.8 | 317.4 | |
| 2.63 | -10.00 | 3.63 | -10.00 | -8.72 | 226.59 | -67.66 | 101.61 | 0.9349 | 118.3 | 999999 | |
| 0.45 | 2.17 | 0.61 | 2.94 | -6.88 | 226.73 | -67.52 | 99.68 | 0.9322 | 206.6 | 155.3 | |
| 0.00 | 1.90 | 0.00 | 2.57 | -6.56 | 226.74 | -67.51 | 99.35 | 0.9318 | 386.0 | 303.6 | |
| 2.17 | 3.99 | 2.95 | 5.41 | -5.75 | 226.55 | -67.70 | 98.45 | 0.9322 | 512.7 | 396.8 | |
| 0.00 | 4.08 | 0.00 | 5.68 | -5.90 | 225.93 | -68.32 | 98.51 | 0.9361 | 281.0 | 202.4 | |
| 10.24 | 20.66 | 14.05 | 28.38 | -4.65 | 226.06 | -68.19 | 97.21 | 0.9342 | -216.9 | -247.3 | |
| 8.88 | 79.19 | 12.89 | 116.61 | -7.26 | 225.26 | -68.99 | 99.85 | 0.9413 | 395.3 | -126.7 | |
| 1.18 | -18.00 | 1.68 | -18.00 | -6.94 | 225.37 | -68.88 | 99.53 | 0.9404 | 575.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.38 | -4.14 | 225.83 | -68.42 | 96.64 | 0.9353 | -339.0 | -304.7 | |
| 0.00 | 2.36 | 0.00 | 3.36 | -5.70 | 225.39 | -68.86 | 98.22 | 0.9392 | -184.0 | -152.0 | |
| 3.99 | -18.00 | 5.83 | -18.00 | -6.85 | 224.96 | -69.29 | 99.37 | 0.9427 | 254.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.89 | -4.36 | 225.44 | -68.80 | 96.82 | 0.9378 | -418.0 | -341.3 | |
| 0.00 | 7.97 | 0.00 | 12.59 | -8.67 | 223.81 | -70.43 | 101.09 | 0.9506 | -657.0 | -362.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
