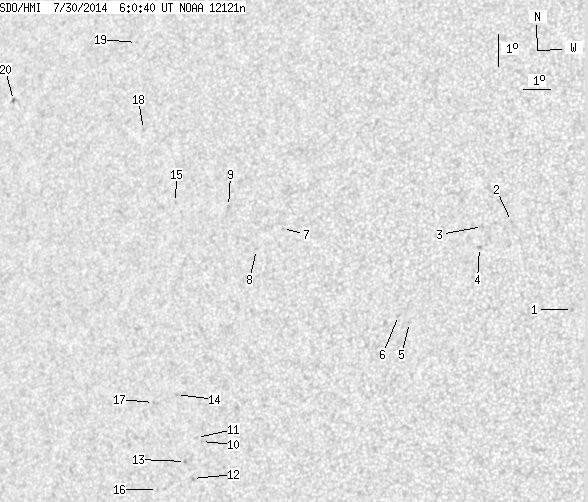

SDO HMI 2014-07-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 25.85 | 0.45 | 15.50 | 14.14 | 260.59 | -33.11 | 72.53 | 0.5561 | 85.8 | 79.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.88 | 13.89 | 271.90 | -21.80 | 67.36 | 0.3922 | -866.0 | -582.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.53 | 269.51 | -24.19 | 63.35 | 0.4414 | -707.0 | -547.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.34 | 268.52 | -25.18 | 64.53 | 0.4541 | -664.0 | -550.1 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 15.68 | 268.50 | -25.20 | 65.90 | 0.4509 | -824.0 | -699.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.28 | 266.35 | -27.35 | 72.20 | 0.4715 | -666.0 | -576.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 13.48 | 265.93 | -27.76 | 71.99 | 0.4783 | -734.0 | -551.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 15.95 | 261.33 | -32.36 | 69.38 | 0.5520 | -658.0 | -526.7 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 15.26 | 260.48 | -33.22 | 70.95 | 0.5613 | -544.0 | -547.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 16.52 | 259.17 | -34.53 | 69.30 | 0.5831 | 745.0 | 640.3 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 9.28 | 259.28 | -34.42 | 81.79 | 0.5658 | 706.0 | 506.7 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 9.39 | 259.07 | -34.62 | 81.62 | 0.5688 | 775.0 | 556.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 8.14 | 259.06 | -34.64 | 83.83 | 0.5681 | 758.0 | 652.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 8.64 | 258.74 | -34.96 | 82.97 | 0.5729 | 734.0 | 688.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 10.66 | 258.16 | -35.54 | 79.54 | 0.5830 | 647.0 | 557.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.54 | 257.09 | -36.61 | 70.05 | 0.6104 | 621.0 | 442.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 7.73 | 257.78 | -35.92 | 84.60 | 0.5861 | 511.0 | 377.6 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 10.37 | 257.32 | -36.38 | 80.16 | 0.5944 | 560.0 | 520.7 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 18.72 | 255.27 | -38.43 | 67.29 | 0.6404 | 101.0 | 157.8 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 21.41 | 254.18 | -39.52 | 63.71 | 0.6630 | 383.0 | 298.1 | |
| 0.63 | 2.27 | 0.45 | 1.59 | 19.28 | 249.51 | -44.19 | 68.29 | 0.7105 | 604.3 | 589.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
