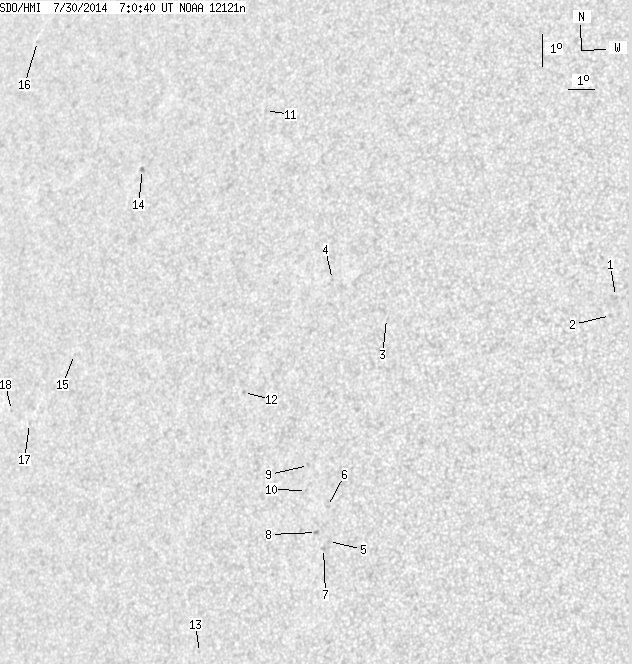

SDO HMI 2014-07-30 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.39 | 0.00 | 13.50 | 13.25 | 255.76 | -37.40 | 75.48 | 0.6111 | 393.8 | 357.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.33 | 268.56 | -24.59 | 64.09 | 0.4458 | -702.0 | -496.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 15.74 | 268.47 | -24.68 | 65.42 | 0.4439 | -744.0 | -638.2 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 15.28 | 260.45 | -32.70 | 70.70 | 0.5543 | -465.0 | -528.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 16.38 | 258.18 | -34.97 | 69.71 | 0.5884 | 551.0 | 488.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 8.36 | 259.23 | -33.92 | 83.39 | 0.5579 | 657.0 | 472.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 9.43 | 259.08 | -34.07 | 81.50 | 0.5609 | 814.0 | 586.8 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 8.14 | 259.06 | -34.09 | 83.80 | 0.5602 | 837.0 | 619.0 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 8.61 | 258.76 | -34.39 | 82.98 | 0.5649 | 885.0 | 679.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 10.64 | 258.22 | -34.93 | 79.49 | 0.5745 | 677.0 | 563.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 9.87 | 258.24 | -34.91 | 80.82 | 0.5733 | 668.0 | 588.7 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 21.48 | 254.16 | -38.99 | 63.40 | 0.6571 | 553.0 | 433.3 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 12.72 | 255.39 | -37.76 | 76.51 | 0.6165 | 604.0 | 518.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 4.71 | 254.61 | -38.54 | 89.53 | 0.6232 | 630.0 | 514.8 | |
| 0.00 | 2.17 | 0.00 | 1.51 | 19.32 | 249.53 | -43.63 | 68.08 | 0.7041 | 737.0 | 596.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 13.44 | 248.18 | -44.97 | 76.61 | 0.7089 | 489.0 | 381.3 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 22.96 | 242.98 | -50.18 | 64.97 | 0.7827 | 199.0 | 156.5 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 11.21 | 246.66 | -46.49 | 79.88 | 0.7250 | 179.0 | 176.2 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 11.55 | 245.77 | -47.39 | 79.48 | 0.7357 | 519.0 | 399.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
