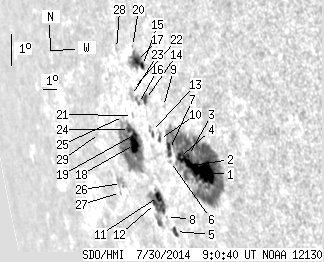

SDO HMI 2014-07-30 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.65 | 425.14 | 94.25 | 508.05 | -7.44 | 227.79 | -64.27 | 100.87 | 0.9107 | 430.5 | 111.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.11 | 244.37 | 25.25 | 272.50 | -7.72 | 230.31 | -61.75 | 101.65 | 0.8931 | 933.5 | 296.6 | |
| 15.49 | -1.00 | 17.50 | -1.00 | -7.59 | 229.35 | -62.71 | 101.31 | 0.9001 | 626.8 | 999999 | |
| 0.27 | -1.00 | 0.31 | -1.00 | -7.29 | 229.22 | -62.83 | 100.96 | 0.9007 | 570.3 | 999999 | |
| 3.17 | -1.00 | 3.67 | -1.00 | -7.41 | 228.57 | -63.48 | 100.96 | 0.9056 | 423.1 | 999999 | |
| 2.72 | 4.08 | 3.33 | 4.99 | -9.82 | 227.52 | -64.53 | 103.36 | 0.9161 | 231.1 | 104.8 | |
| 0.00 | 1.09 | 0.00 | 1.29 | -7.60 | 227.89 | -64.17 | 101.04 | 0.9107 | 205.0 | 120.8 | |
| 4.35 | -1.00 | 5.16 | -1.00 | -7.22 | 227.92 | -64.13 | 100.64 | 0.9100 | 376.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.35 | -9.39 | 227.02 | -65.03 | 102.81 | 0.9189 | 208.0 | 102.8 | |
| 0.00 | 0.72 | 0.00 | 0.85 | -5.90 | 227.82 | -64.24 | 99.18 | 0.9092 | 184.0 | 166.0 | |
| 1.09 | 3.71 | 1.32 | 4.49 | -6.97 | 227.27 | -64.79 | 100.25 | 0.9143 | 292.7 | 333.6 | |
| 4.71 | 34.16 | 5.92 | 43.28 | -8.80 | 226.63 | -65.42 | 102.10 | 0.9208 | 247.6 | -218.6 | |
| 2.36 | -11.00 | 3.01 | -11.00 | -9.05 | 226.32 | -65.73 | 102.31 | 0.9231 | -786.8 | 999999 | |
| 0.00 | 4.53 | 0.00 | 5.60 | -6.77 | 226.73 | -65.32 | 99.94 | 0.9178 | 354.0 | 236.0 | |
| 2.81 | 4.89 | 3.48 | 6.06 | -5.79 | 226.53 | -65.53 | 98.85 | 0.9181 | 533.4 | 418.6 | |
| 1.90 | 19.12 | 2.34 | 23.92 | -4.74 | 226.52 | -65.53 | 97.72 | 0.9171 | 101.9 | -318.5 | |
| 0.54 | 3.62 | 0.69 | 4.60 | -5.97 | 225.96 | -66.10 | 98.95 | 0.9221 | 285.0 | 228.4 | |
| 4.26 | -15.00 | 5.31 | -15.00 | -4.66 | 226.09 | -65.97 | 97.56 | 0.9199 | -187.0 | 999999 | |
| 9.60 | 86.17 | 12.65 | 114.84 | -7.30 | 225.28 | -66.77 | 100.26 | 0.9279 | 394.5 | -88.6 | |
| 0.91 | -18.00 | 1.18 | -18.00 | -6.98 | 225.38 | -66.68 | 99.94 | 0.9270 | 607.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -4.22 | 225.86 | -66.19 | 97.05 | 0.9210 | -316.0 | -329.0 | |
| 0.00 | 1.45 | 0.00 | 1.89 | -6.39 | 225.39 | -66.67 | 99.31 | 0.9263 | 188.0 | 179.6 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -5.57 | 225.59 | -66.47 | 98.46 | 0.9241 | -120.0 | -126.3 | |
| 0.00 | 2.63 | 0.00 | 3.40 | -5.77 | 225.47 | -66.59 | 98.65 | 0.9252 | -226.0 | -142.2 | |
| 2.36 | -18.00 | 3.13 | -18.00 | -6.86 | 225.02 | -67.04 | 99.75 | 0.9291 | 322.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.10 | -6.49 | 224.64 | -67.41 | 99.29 | 0.9311 | -167.0 | -181.9 | |
| 0.00 | 8.79 | 0.00 | 12.50 | -8.66 | 223.75 | -68.30 | 101.43 | 0.9387 | -407.0 | -159.5 | |
| 0.00 | 0.91 | 0.00 | 1.30 | -8.96 | 223.55 | -68.51 | 101.71 | 0.9401 | -217.0 | -171.2 | |
| 0.00 | 1.63 | 0.00 | 2.17 | -4.40 | 224.57 | -67.48 | 97.05 | 0.9296 | -96.0 | -152.4 | |
| 0.00 | 0.82 | 0.00 | 1.23 | -7.23 | 222.37 | -69.68 | 99.71 | 0.9453 | -37.0 | -42.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
