SDO HMI 2014-07-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.52 | 43.22 | 12.83 | 41.34 | -18.59 | 237.21 | -54.30 | 115.79 | 0.8565 | -156.9 | -182.4 | |
|
previous
or next observation for the same group /

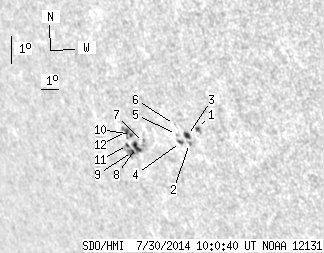

back to the solar disc SDO HMI 2014-07-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 3.35 | 1.12 | 2.96 | -17.95 | 240.12 | -51.38 | 116.16 | 0.8303 | 642.5 | 559.7 | |
| 0.00 | 1.90 | 0.00 | 1.72 | -18.50 | 239.47 | -52.03 | 116.53 | 0.8377 | 469.0 | 376.0 | |
| 2.45 | 4.26 | 2.20 | 3.83 | -18.23 | 239.48 | -52.02 | 116.23 | 0.8367 | 596.4 | 445.0 | |
| 1.09 | 2.54 | 0.99 | 2.31 | -18.50 | 239.00 | -52.51 | 116.35 | 0.8417 | 332.8 | 236.4 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -18.25 | 238.90 | -52.61 | 116.02 | 0.8418 | 197.0 | 145.6 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -17.92 | 238.94 | -52.57 | 115.66 | 0.8404 | 346.0 | 323.3 | |
| 0.00 | 2.90 | 0.00 | 2.79 | -18.68 | 236.91 | -54.60 | 115.76 | 0.8595 | -712.0 | -593.9 | |
| 4.08 | 17.40 | 3.98 | 17.15 | -18.88 | 236.41 | -55.10 | 115.81 | 0.8640 | -718.6 | -240.8 | |
| 1.18 | -8.00 | 1.16 | -8.00 | -19.04 | 236.10 | -55.40 | 115.88 | 0.8668 | -458.9 | 999999 | |
| 1.00 | 9.97 | 0.97 | 9.75 | -18.46 | 236.34 | -55.17 | 115.32 | 0.8634 | -766.1 | -518.3 | |
| 0.82 | -8.00 | 0.81 | -8.00 | -18.86 | 235.91 | -55.60 | 115.61 | 0.8678 | -180.2 | 999999 | |
| 1.63 | -10.00 | 1.60 | -10.00 | -18.38 | 236.09 | -55.42 | 115.15 | 0.8651 | -638.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
