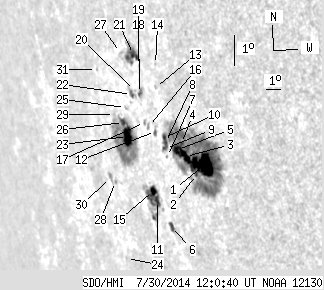

SDO HMI 2014-07-30 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.60 | 423.67 | 102.77 | 474.22 | -7.45 | 227.94 | -62.46 | 101.22 | 0.8976 | 462.0 | 98.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.42 | 249.38 | 36.76 | 262.30 | -7.74 | 230.27 | -60.13 | 101.99 | 0.8804 | 791.1 | 272.1 | |
| 0.27 | -1.00 | 0.29 | -1.00 | -8.06 | 229.75 | -60.65 | 102.25 | 0.8850 | 394.0 | 999999 | |
| 10.51 | -1.00 | 11.28 | -1.00 | -7.55 | 229.18 | -61.23 | 101.56 | 0.8888 | 559.7 | 999999 | |
| 1.45 | -1.00 | 1.56 | -1.00 | -7.16 | 229.02 | -61.39 | 101.10 | 0.8895 | 607.8 | 999999 | |
| 6.25 | -1.00 | 6.82 | -1.00 | -7.38 | 228.70 | -61.70 | 101.27 | 0.8922 | 485.3 | 999999 | |
| 2.54 | 3.99 | 2.91 | 4.58 | -9.88 | 227.56 | -62.84 | 103.78 | 0.9043 | 306.2 | 133.6 | |
| 0.00 | 1.00 | 0.00 | 1.12 | -7.66 | 227.97 | -62.44 | 101.44 | 0.8982 | 179.0 | 146.3 | |
| 1.54 | -1.00 | 1.72 | -1.00 | -7.23 | 227.95 | -62.46 | 100.96 | 0.8978 | 412.2 | 999999 | |
| 1.18 | -1.00 | 1.32 | -1.00 | -7.42 | 227.90 | -62.51 | 101.16 | 0.8984 | 314.0 | 999999 | |
| 1.36 | -1.00 | 1.52 | -1.00 | -7.07 | 227.92 | -62.49 | 100.78 | 0.8978 | 367.4 | 999999 | |
| 2.99 | 33.70 | 3.51 | 40.07 | -9.13 | 226.85 | -63.56 | 102.82 | 0.9084 | 263.9 | -341.8 | |
| 0.00 | 3.35 | 0.00 | 3.82 | -6.94 | 227.34 | -63.06 | 100.53 | 0.9019 | 436.0 | 313.8 | |
| 0.00 | 1.36 | 0.00 | 1.52 | -5.55 | 227.65 | -62.76 | 99.06 | 0.8979 | 264.0 | 193.3 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -4.82 | 227.78 | -62.63 | 98.28 | 0.8960 | -244.0 | -298.0 | |
| 4.53 | -11.00 | 5.35 | -11.00 | -8.84 | 226.67 | -63.74 | 102.46 | 0.9093 | 161.3 | 999999 | |
| 0.00 | 2.26 | 0.00 | 2.62 | -6.82 | 226.89 | -63.52 | 100.32 | 0.9051 | 409.0 | 335.0 | |
| 0.00 | 1.63 | 0.00 | 1.90 | -6.72 | 226.63 | -63.77 | 100.16 | 0.9068 | 258.0 | 222.7 | |
| 0.91 | 3.62 | 1.05 | 4.21 | -5.84 | 226.49 | -63.92 | 99.17 | 0.9068 | 606.8 | 449.1 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -4.96 | 226.59 | -63.82 | 98.23 | 0.9051 | 339.0 | 274.7 | |
| 0.00 | 1.63 | 0.00 | 1.92 | -5.77 | 226.15 | -64.26 | 99.04 | 0.9092 | 287.0 | 303.4 | |
| 5.53 | 19.66 | 6.44 | 23.07 | -4.65 | 226.29 | -64.11 | 97.84 | 0.9069 | -134.3 | -327.1 | |
| 1.72 | 4.44 | 2.05 | 5.28 | -5.92 | 225.90 | -64.51 | 99.16 | 0.9111 | 259.1 | 220.3 | |
| 13.50 | 87.96 | 16.60 | 109.40 | -7.28 | 225.27 | -65.14 | 100.52 | 0.9171 | 471.1 | -79.0 | |
| 0.00 | 0.72 | 0.00 | 0.98 | -11.24 | 223.71 | -66.69 | 104.45 | 0.9318 | -77.0 | -107.0 | |
| 0.00 | 0.91 | 0.00 | 1.11 | -6.37 | 225.36 | -65.05 | 99.56 | 0.9154 | 244.0 | 186.2 | |
| 2.90 | -23.00 | 3.59 | -23.00 | -6.86 | 225.09 | -65.32 | 100.04 | 0.9179 | 392.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.87 | -4.67 | 225.36 | -65.05 | 97.71 | 0.9136 | -511.0 | -492.9 | |
| 0.00 | 1.45 | 0.00 | 1.91 | -8.81 | 223.86 | -66.55 | 101.90 | 0.9281 | -330.0 | -326.6 | |
| 0.00 | 0.91 | 0.00 | 1.15 | -6.67 | 224.46 | -65.95 | 99.72 | 0.9218 | -303.0 | -271.1 | |
| 0.00 | 3.26 | 0.00 | 4.35 | -8.72 | 223.50 | -66.91 | 101.74 | 0.9302 | 206.0 | 107.4 | |
| 0.00 | 0.45 | 0.00 | 0.59 | -5.37 | 223.39 | -67.02 | 98.16 | 0.9276 | -338.0 | -341.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
