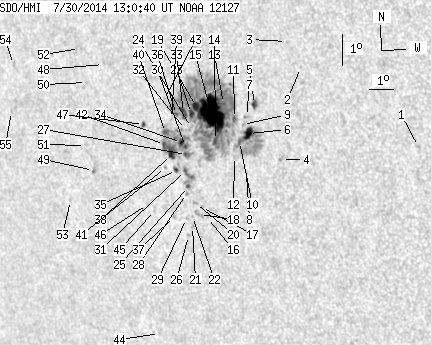

SDO HMI 2014-07-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.67 | 556.16 | 76.82 | 376.99 | -8.29 | 249.08 | -40.77 | 108.58 | 0.6840 | 358.2 | 117.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.72 | -8.45 | 257.31 | -32.55 | 113.22 | 0.5813 | 707.0 | 572.2 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -6.23 | 253.09 | -36.76 | 107.39 | 0.6257 | 583.0 | 460.1 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -5.45 | 252.62 | -37.24 | 105.98 | 0.6288 | 575.0 | 516.9 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -9.16 | 252.05 | -37.81 | 111.24 | 0.6515 | -37.0 | -186.8 | |
| 2.45 | 5.80 | 1.60 | 3.79 | -7.49 | 251.19 | -38.67 | 108.39 | 0.6551 | -603.8 | -469.1 | |
| 8.33 | 57.24 | 5.50 | 37.83 | -8.42 | 250.84 | -39.01 | 109.57 | 0.6632 | 865.4 | 326.7 | |
| 0.00 | 2.17 | 0.00 | 1.43 | -7.89 | 250.83 | -39.03 | 108.80 | 0.6612 | 626.0 | 611.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -9.69 | 250.59 | -39.26 | 111.26 | 0.6716 | 562.0 | 482.0 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -8.15 | 250.64 | -39.22 | 109.09 | 0.6646 | 581.0 | 480.8 | |
| 0.72 | -6.00 | 0.48 | -6.00 | -8.70 | 250.45 | -39.41 | 109.78 | 0.6691 | -199.6 | 999999 | |
| 1.09 | 429.68 | 0.72 | 290.98 | -7.98 | 250.34 | -39.52 | 108.71 | 0.6676 | 843.4 | 170.9 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -9.18 | 250.18 | -39.67 | 110.34 | 0.6744 | 230.0 | 167.1 | |
| 1.45 | -11.00 | 0.97 | -11.00 | -7.54 | 249.95 | -39.91 | 107.90 | 0.6706 | 1041.7 | 999999 | |
| 3.17 | -11.00 | 2.14 | -11.00 | -8.73 | 249.48 | -40.38 | 109.37 | 0.6810 | 42.3 | 999999 | |
| 63.67 | -11.00 | 42.81 | -11.00 | -7.89 | 249.42 | -40.43 | 108.16 | 0.6784 | 928.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -11.20 | 248.77 | -41.08 | 112.43 | 0.6997 | -700.0 | -638.3 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -10.90 | 248.57 | -41.28 | 111.92 | 0.7006 | -847.0 | -709.4 | |
| 0.00 | 4.26 | 0.00 | 2.96 | -11.13 | 248.45 | -41.40 | 112.17 | 0.7030 | -647.0 | -589.4 | |
| 5.34 | -11.00 | 3.62 | -11.00 | -7.71 | 248.84 | -41.02 | 107.66 | 0.6848 | 697.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.38 | -10.79 | 248.35 | -41.51 | 111.66 | 0.7028 | -795.0 | -662.9 | |
| 0.00 | 1.72 | 0.00 | 1.20 | -11.53 | 248.09 | -41.77 | 112.54 | 0.7089 | -724.0 | -601.4 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -11.21 | 248.15 | -41.71 | 112.14 | 0.7069 | -557.0 | -473.9 | |
| 3.53 | -11.00 | 2.41 | -11.00 | -7.94 | 248.60 | -41.25 | 107.89 | 0.6885 | 578.4 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.86 | -8.38 | 248.54 | -41.31 | 108.47 | 0.6909 | 420.0 | 371.2 | |
| 1.09 | 12.77 | 0.75 | 8.85 | -10.26 | 248.14 | -41.71 | 110.87 | 0.7030 | -857.5 | -683.6 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -11.83 | 247.86 | -41.99 | 112.83 | 0.7128 | -650.0 | -516.7 | |
| 2.08 | -11.00 | 1.44 | -11.00 | -9.25 | 248.22 | -41.64 | 109.53 | 0.6981 | -749.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -10.49 | 248.02 | -41.83 | 111.12 | 0.7053 | -623.0 | -512.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -11.29 | 247.88 | -41.97 | 112.12 | 0.7103 | -531.0 | -457.7 | |
| 1.45 | -11.00 | 1.00 | -11.00 | -9.00 | 248.21 | -41.64 | 109.18 | 0.6972 | -677.9 | 999999 | |
| 0.82 | -25.00 | 0.57 | -25.00 | -9.76 | 248.10 | -41.76 | 110.17 | 0.7015 | -883.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -8.46 | 248.29 | -41.57 | 108.47 | 0.6942 | 411.0 | 308.2 | |
| 4.98 | -11.00 | 3.41 | -11.00 | -7.93 | 248.27 | -41.58 | 107.73 | 0.6924 | 549.1 | 999999 | |
| 2.72 | -11.00 | 1.88 | -11.00 | -8.88 | 248.06 | -41.79 | 108.96 | 0.6985 | 203.5 | 999999 | |
| 1.36 | 4.62 | 0.95 | 3.22 | -9.79 | 247.72 | -42.14 | 110.03 | 0.7060 | -694.1 | -641.1 | |
| 0.91 | -11.00 | 0.62 | -11.00 | -8.01 | 247.97 | -41.88 | 107.72 | 0.6963 | 271.8 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.41 | -11.26 | 247.38 | -42.47 | 111.85 | 0.7158 | -586.0 | -450.8 | |
| 3.35 | -11.00 | 2.34 | -11.00 | -9.29 | 247.59 | -42.27 | 109.31 | 0.7056 | -698.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -8.15 | 247.75 | -42.11 | 107.82 | 0.6995 | 230.0 | 179.2 | |
| 2.35 | -11.00 | 1.64 | -11.00 | -8.61 | 247.44 | -42.42 | 108.32 | 0.7049 | -264.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -9.72 | 247.27 | -42.59 | 109.75 | 0.7110 | -288.0 | -275.0 | |
| 1.81 | -11.00 | 1.27 | -11.00 | -8.99 | 247.34 | -42.52 | 108.80 | 0.7074 | -516.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -7.54 | 247.54 | -42.32 | 106.90 | 0.6999 | 447.0 | 363.7 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -15.11 | 245.87 | -43.98 | 116.06 | 0.7485 | 581.0 | 485.4 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -11.13 | 246.56 | -43.30 | 111.30 | 0.7245 | -391.0 | -397.8 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -10.96 | 246.29 | -43.57 | 110.96 | 0.7269 | -459.0 | -296.8 | |
| 1.00 | 2.81 | 0.70 | 1.98 | -8.42 | 246.53 | -43.32 | 107.70 | 0.7147 | 585.2 | 451.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -6.65 | 245.05 | -44.80 | 104.78 | 0.7262 | 428.0 | 333.8 | |
| 0.00 | 2.08 | 0.00 | 1.55 | -10.04 | 244.10 | -45.76 | 108.87 | 0.7477 | -763.0 | -600.6 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -7.27 | 244.23 | -45.63 | 105.32 | 0.7374 | -566.0 | -442.0 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -9.27 | 243.88 | -45.97 | 107.79 | 0.7476 | -595.0 | -450.5 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -6.23 | 244.05 | -45.80 | 103.88 | 0.7365 | -500.0 | -548.2 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -11.07 | 242.86 | -47.00 | 109.70 | 0.7646 | -267.0 | -272.5 | |
| 0.00 | 2.26 | 0.00 | 1.76 | -6.95 | 240.96 | -48.90 | 103.87 | 0.7727 | -642.0 | -428.6 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -8.44 | 240.63 | -49.23 | 105.64 | 0.7801 | -569.0 | -445.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
