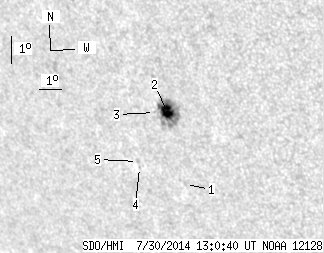

SDO HMI 2014-07-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.50 | 54.72 | 9.91 | 40.28 | -20.66 | 249.30 | -40.56 | 124.68 | 0.7421 | 698.1 | 358.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.89 | -23.00 | 249.32 | -40.54 | 127.41 | 0.7555 | 280.0 | 305.7 | |
| 13.50 | 50.27 | 9.91 | 36.90 | -20.51 | 249.40 | -40.46 | 124.57 | 0.7403 | 875.9 | 370.8 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -20.58 | 248.82 | -41.04 | 124.30 | 0.7464 | -216.0 | -158.9 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -22.54 | 247.46 | -42.40 | 125.77 | 0.7698 | 330.0 | 246.3 | |
| 0.00 | 1.54 | 0.00 | 1.19 | -22.34 | 247.45 | -42.41 | 125.53 | 0.7688 | 636.0 | 439.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
