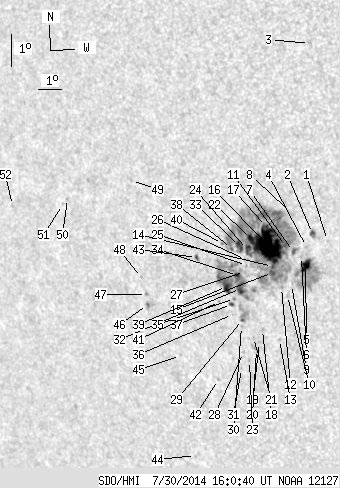

SDO HMI 2014-07-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.61 | 539.90 | 76.89 | 356.88 | -8.28 | 249.05 | -39.14 | 109.31 | 0.6641 | 364.1 | 146.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | -7.54 | 251.78 | -36.41 | 109.57 | 0.6268 | 400.0 | 353.0 | |
| 1.63 | 4.35 | 1.04 | 2.77 | -7.36 | 251.23 | -36.97 | 109.01 | 0.6331 | -692.2 | -561.9 | |
| 0.00 | 1.99 | 0.00 | 1.24 | -1.47 | 251.47 | -36.73 | 99.91 | 0.6091 | 725.0 | 478.6 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -7.78 | 250.95 | -37.24 | 109.50 | 0.6384 | 736.0 | 660.3 | |
| 8.06 | 53.69 | 5.20 | 34.65 | -8.38 | 250.85 | -37.35 | 110.34 | 0.6424 | 898.1 | 347.6 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -8.10 | 250.72 | -37.47 | 109.87 | 0.6427 | 517.0 | 426.6 | |
| 1.27 | 4.07 | 0.82 | 2.64 | -7.97 | 250.43 | -37.77 | 109.52 | 0.6458 | 830.2 | 596.1 | |
| 0.00 | 2.81 | 0.00 | 1.81 | -6.78 | 250.47 | -37.73 | 107.78 | 0.6403 | 482.0 | 473.3 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -9.01 | 250.22 | -37.97 | 110.94 | 0.6529 | 279.0 | 252.8 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -9.37 | 250.02 | -38.18 | 111.36 | 0.6571 | -4.0 | -24.9 | |
| 1.72 | 339.07 | 1.12 | 222.86 | -7.80 | 250.13 | -38.06 | 109.13 | 0.6488 | 967.9 | 303.3 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -9.13 | 249.82 | -38.38 | 110.91 | 0.6585 | -71.0 | -88.6 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -10.79 | 249.50 | -38.70 | 113.09 | 0.6699 | -795.0 | -665.5 | |
| 1.18 | -11.00 | 0.77 | -11.00 | -8.49 | 249.54 | -38.65 | 109.85 | 0.6591 | 459.8 | 999999 | |
| 2.90 | -11.00 | 1.91 | -11.00 | -8.68 | 249.52 | -38.68 | 110.11 | 0.6602 | 98.4 | 999999 | |
| 63.29 | -11.00 | 41.49 | -11.00 | -7.84 | 249.46 | -38.74 | 108.87 | 0.6574 | 999.5 | 999999 | |
| 1.90 | -11.00 | 1.24 | -11.00 | -7.25 | 249.45 | -38.75 | 108.00 | 0.6552 | 828.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -10.51 | 248.86 | -39.33 | 112.37 | 0.6762 | -314.0 | -235.9 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -10.94 | 248.68 | -39.52 | 112.86 | 0.6803 | -815.0 | -690.8 | |
| 0.00 | 2.08 | 0.00 | 1.41 | -11.17 | 248.52 | -39.68 | 113.10 | 0.6833 | -750.0 | -614.9 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -10.79 | 248.46 | -39.74 | 112.55 | 0.6823 | -765.0 | -655.3 | |
| 5.61 | -11.00 | 3.71 | -11.00 | -7.69 | 248.80 | -39.39 | 108.35 | 0.6649 | 728.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -11.54 | 248.17 | -40.03 | 113.42 | 0.6890 | -645.0 | -608.3 | |
| 3.80 | -11.00 | 2.53 | -11.00 | -8.02 | 248.60 | -39.59 | 108.73 | 0.6687 | 568.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -8.52 | 248.50 | -39.69 | 109.40 | 0.6720 | 390.0 | 382.6 | |
| 0.00 | 2.54 | 0.00 | 1.69 | -8.34 | 248.49 | -39.71 | 109.13 | 0.6714 | 381.0 | 340.8 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -8.72 | 248.40 | -39.80 | 109.63 | 0.6740 | 204.0 | 37.4 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -11.30 | 247.97 | -40.23 | 112.99 | 0.6903 | -562.0 | -445.1 | |
| 0.54 | 13.40 | 0.37 | 9.05 | -10.25 | 248.10 | -40.10 | 111.62 | 0.6841 | -915.2 | -616.2 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -10.47 | 248.02 | -40.17 | 111.89 | 0.6860 | -652.0 | -517.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -11.82 | 247.79 | -40.40 | 113.61 | 0.6946 | -588.0 | -566.3 | |
| 6.52 | 78.04 | 4.39 | 52.66 | -9.27 | 248.16 | -40.03 | 110.29 | 0.6791 | -687.4 | -243.7 | |
| 5.34 | -11.00 | 3.56 | -11.00 | -7.94 | 248.29 | -39.90 | 108.48 | 0.6722 | 562.8 | 999999 | |
| 2.17 | -32.00 | 1.46 | -32.00 | -8.86 | 248.10 | -40.10 | 109.69 | 0.6783 | 286.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -9.60 | 247.87 | -40.33 | 110.62 | 0.6840 | -746.0 | -677.1 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -10.11 | 247.71 | -40.48 | 111.25 | 0.6881 | -407.0 | -490.8 | |
| 1.18 | 2.26 | 0.80 | 1.54 | -9.80 | 247.72 | -40.48 | 110.82 | 0.6866 | -660.1 | -543.0 | |
| 0.63 | -11.00 | 0.43 | -11.00 | -8.03 | 247.96 | -40.24 | 108.45 | 0.6766 | 388.0 | 999999 | |
| 7.42 | -32.00 | 5.04 | -32.00 | -9.24 | 247.60 | -40.60 | 109.99 | 0.6858 | -557.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -7.89 | 247.61 | -40.58 | 108.11 | 0.6803 | 383.0 | 307.2 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -9.74 | 247.24 | -40.96 | 110.50 | 0.6921 | -302.0 | -331.1 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -12.24 | 246.76 | -41.43 | 113.64 | 0.7082 | -533.0 | -455.8 | |
| 0.91 | 1.99 | 0.62 | 1.37 | -8.40 | 246.48 | -41.71 | 108.34 | 0.6958 | 540.4 | 436.5 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -14.78 | 245.23 | -42.97 | 116.15 | 0.7365 | 326.0 | 279.8 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -11.57 | 245.29 | -42.90 | 112.06 | 0.7219 | -397.0 | -281.0 | |
| 0.54 | 4.26 | 0.39 | 3.06 | -10.04 | 244.16 | -44.03 | 109.56 | 0.7287 | -755.8 | -408.7 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -9.72 | 244.17 | -44.02 | 109.15 | 0.7274 | -727.0 | -648.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -9.20 | 244.04 | -44.15 | 108.41 | 0.7270 | -524.0 | -480.1 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -6.17 | 244.02 | -44.18 | 104.35 | 0.7175 | -553.0 | -444.5 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -6.94 | 241.11 | -47.09 | 104.41 | 0.7529 | -466.0 | -419.7 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -7.14 | 240.86 | -47.34 | 104.60 | 0.7563 | -485.0 | -360.3 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -7.35 | 238.50 | -49.70 | 104.14 | 0.7822 | -165.0 | -217.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
