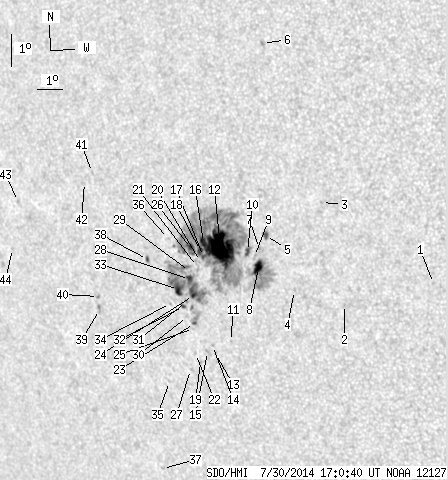

SDO HMI 2014-07-30 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.83 | 557.07 | 70.46 | 364.92 | -8.24 | 249.12 | -38.52 | 109.56 | 0.6563 | 450.3 | 160.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.81 | -8.52 | 257.34 | -30.31 | 114.89 | 0.5523 | 681.0 | 546.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -9.35 | 254.01 | -33.63 | 113.95 | 0.6001 | 578.0 | 524.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -6.20 | 253.46 | -34.18 | 108.65 | 0.5917 | 652.0 | 569.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -9.02 | 252.18 | -35.46 | 112.32 | 0.6217 | -486.0 | -299.2 | |
| 2.17 | 4.16 | 1.38 | 2.64 | -7.35 | 251.25 | -36.39 | 109.30 | 0.6257 | -732.7 | -502.2 | |
| 0.00 | 2.17 | 0.00 | 1.34 | -1.41 | 251.48 | -36.16 | 100.00 | 0.6011 | 731.0 | 551.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -7.77 | 250.98 | -36.66 | 109.79 | 0.6310 | 938.0 | 702.2 | |
| 8.15 | 54.86 | 5.21 | 35.12 | -8.37 | 250.88 | -36.77 | 110.64 | 0.6350 | 915.7 | 380.1 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -8.03 | 250.76 | -36.88 | 110.07 | 0.6350 | 522.0 | 401.7 | |
| 2.26 | 358.94 | 1.45 | 234.01 | -7.89 | 250.50 | -37.14 | 109.73 | 0.6376 | 821.5 | 316.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -10.79 | 249.46 | -38.18 | 113.37 | 0.6637 | -775.0 | -695.0 | |
| 64.82 | -10.00 | 42.17 | -10.00 | -7.83 | 249.46 | -38.18 | 109.13 | 0.6504 | 1022.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -11.21 | 248.80 | -38.84 | 113.60 | 0.6736 | -717.0 | -527.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -10.96 | 248.72 | -38.92 | 113.21 | 0.6734 | -811.0 | -599.8 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -11.16 | 248.49 | -39.15 | 113.37 | 0.6771 | -768.0 | -609.2 | |
| 4.98 | -10.00 | 3.27 | -10.00 | -7.72 | 248.80 | -38.84 | 108.65 | 0.6582 | 756.5 | 999999 | |
| 0.91 | -10.00 | 0.60 | -10.00 | -8.16 | 248.75 | -38.89 | 109.26 | 0.6606 | 527.9 | 999999 | |
| 3.35 | -10.00 | 2.21 | -10.00 | -7.98 | 248.66 | -38.99 | 108.95 | 0.6610 | 601.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -11.53 | 248.15 | -39.50 | 113.70 | 0.6829 | -783.0 | -650.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -8.32 | 248.61 | -39.03 | 109.43 | 0.6630 | 208.0 | 331.2 | |
| 0.00 | 3.53 | 0.00 | 2.34 | -8.49 | 248.47 | -39.17 | 109.60 | 0.6654 | 420.0 | 336.1 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -11.26 | 247.99 | -39.65 | 113.24 | 0.6834 | -648.0 | -501.3 | |
| 0.91 | 12.04 | 0.61 | 8.07 | -10.30 | 248.10 | -39.54 | 111.98 | 0.6777 | -881.8 | -655.3 | |
| 1.99 | 81.48 | 1.33 | 54.51 | -9.42 | 248.19 | -39.45 | 110.78 | 0.6727 | -883.4 | -295.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -10.46 | 248.04 | -39.60 | 112.17 | 0.6792 | -566.0 | -539.0 | |
| 5.52 | -10.00 | 3.65 | -10.00 | -7.94 | 248.30 | -39.34 | 108.73 | 0.6652 | 585.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -11.79 | 247.70 | -39.95 | 113.80 | 0.6892 | -633.0 | -587.8 | |
| 3.98 | -24.00 | 2.66 | -24.00 | -8.92 | 248.10 | -39.54 | 110.04 | 0.6718 | -3.3 | 999999 | |
| 0.00 | 3.17 | 0.00 | 2.11 | -8.67 | 248.13 | -39.51 | 109.70 | 0.6703 | 363.0 | 282.5 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -10.10 | 247.85 | -39.79 | 111.57 | 0.6798 | -400.0 | -356.2 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -9.62 | 247.88 | -39.76 | 110.92 | 0.6774 | -765.0 | -672.0 | |
| 1.27 | 2.63 | 0.85 | 1.77 | -9.79 | 247.74 | -39.90 | 111.09 | 0.6798 | -694.3 | -575.6 | |
| 6.43 | -24.00 | 4.33 | -24.00 | -9.26 | 247.61 | -40.03 | 110.29 | 0.6791 | -592.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -9.73 | 247.22 | -40.42 | 110.75 | 0.6857 | -464.0 | -414.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -12.23 | 246.75 | -40.89 | 113.91 | 0.7021 | -605.0 | -462.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -7.68 | 247.41 | -40.23 | 107.97 | 0.6752 | 520.0 | 405.3 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -15.08 | 245.84 | -41.80 | 117.14 | 0.7255 | 552.0 | 488.0 | |
| 1.09 | 2.63 | 0.74 | 1.79 | -8.40 | 246.47 | -41.18 | 108.57 | 0.6893 | 550.1 | 455.9 | |
| 0.00 | 2.99 | 0.00 | 2.13 | -10.12 | 244.20 | -43.44 | 109.92 | 0.7223 | -771.0 | -586.9 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -9.71 | 244.22 | -43.42 | 109.39 | 0.7205 | -717.0 | -618.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -5.82 | 244.48 | -43.16 | 104.22 | 0.7043 | 160.0 | 216.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -6.16 | 244.11 | -43.53 | 104.55 | 0.7098 | -132.0 | -156.9 | |
| 0.00 | 1.63 | 0.00 | 1.21 | -6.96 | 241.14 | -46.50 | 104.63 | 0.7464 | -416.0 | -391.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -8.46 | 240.65 | -46.99 | 106.40 | 0.7562 | -483.0 | -425.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
