SDO HMI 2014-07-30 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.40 | 0.00 | 9.75 | 12.75 | 260.99 | -26.10 | 70.99 | 0.4534 | -89.6 | -34.7 | |
|
previous
or next observation for the same group /

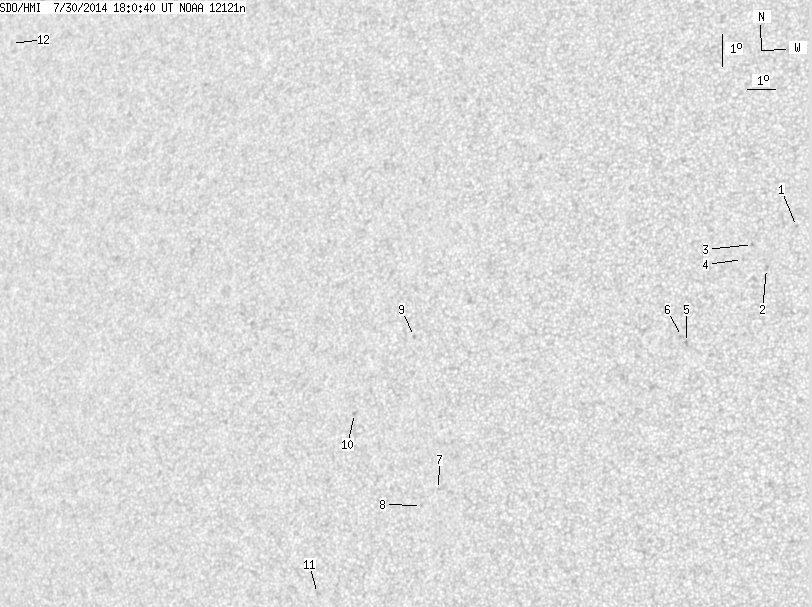

back to the solar disc SDO HMI 2014-07-30 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.96 | 270.13 | -16.95 | 54.36 | 0.3447 | -795.0 | -558.8 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 15.63 | 269.26 | -17.83 | 58.93 | 0.3458 | -753.0 | -660.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.36 | 268.72 | -18.37 | 57.79 | 0.3588 | -825.0 | -683.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.89 | 268.43 | -18.65 | 59.32 | 0.3592 | -827.0 | -471.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 13.28 | 266.80 | -20.29 | 67.69 | 0.3663 | -849.0 | -628.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.46 | 266.62 | -20.47 | 67.39 | 0.3700 | -787.0 | -649.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 8.46 | 258.76 | -28.33 | 82.65 | 0.4751 | 719.0 | 482.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 7.95 | 258.20 | -28.88 | 83.79 | 0.4831 | 604.0 | 454.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 13.09 | 257.43 | -29.66 | 73.60 | 0.5044 | 710.0 | 623.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 10.64 | 255.56 | -31.53 | 78.88 | 0.5258 | 766.0 | 562.7 | |
| 0.00 | 2.08 | 0.00 | 1.22 | 5.10 | 254.68 | -32.40 | 89.42 | 0.5358 | 804.0 | 603.8 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 21.16 | 238.76 | -48.32 | 66.84 | 0.7599 | 158.0 | 267.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
