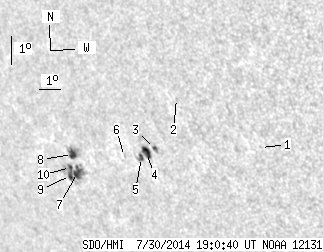

SDO HMI 2014-07-30 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.81 | 56.93 | 21.07 | 48.44 | -18.68 | 237.21 | -49.33 | 117.88 | 0.8144 | -146.3 | -113.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.63 | 245.09 | -41.44 | 120.52 | 0.7345 | 581.0 | 546.0 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -16.25 | 241.81 | -44.72 | 117.11 | 0.7611 | 609.0 | 513.4 | |
| 1.00 | 3.08 | 0.79 | 2.44 | -18.00 | 240.25 | -46.28 | 118.45 | 0.7840 | 752.7 | 584.2 | |
| 6.06 | 13.85 | 4.86 | 11.15 | -18.16 | 239.82 | -46.71 | 118.44 | 0.7887 | 641.0 | 364.6 | |
| 1.63 | -4.00 | 1.32 | -4.00 | -18.35 | 239.52 | -47.01 | 118.52 | 0.7924 | 505.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -18.38 | 238.70 | -47.83 | 118.17 | 0.8001 | 296.0 | 170.7 | |
| 6.52 | 27.15 | 5.70 | 23.85 | -19.11 | 236.09 | -50.44 | 117.87 | 0.8262 | -781.8 | -254.1 | |
| 4.98 | 11.31 | 4.33 | 9.82 | -18.52 | 236.09 | -50.45 | 117.20 | 0.8241 | -785.7 | -516.6 | |
| 2.90 | -7.00 | 2.56 | -7.00 | -19.24 | 235.68 | -50.86 | 117.85 | 0.8303 | -324.5 | 999999 | |
| 1.72 | -7.00 | 1.51 | -7.00 | -18.97 | 235.79 | -50.74 | 117.59 | 0.8283 | -459.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
