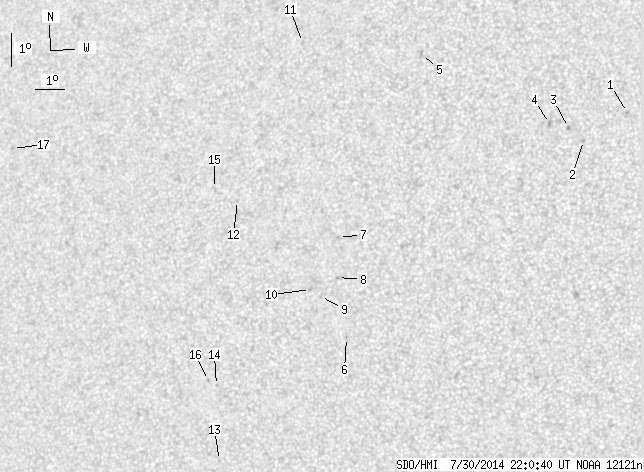

SDO HMI 2014-07-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.94 | 0.00 | 13.21 | 10.93 | 259.64 | -25.23 | 75.40 | 0.4361 | 238.8 | 91.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.78 | 268.51 | -16.36 | 62.12 | 0.3109 | -719.0 | -509.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.88 | 267.13 | -17.74 | 66.38 | 0.3256 | -885.0 | -704.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.27 | 266.61 | -18.26 | 65.84 | 0.3357 | -932.0 | -778.8 | |
| 0.00 | 2.72 | 0.00 | 1.43 | 13.37 | 265.98 | -18.90 | 66.20 | 0.3458 | -794.0 | -534.9 | |
| 0.00 | 3.17 | 0.00 | 1.73 | 15.35 | 261.47 | -23.40 | 65.36 | 0.4232 | -841.0 | -605.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 6.61 | 259.66 | -25.21 | 86.56 | 0.4256 | 780.0 | 658.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 9.64 | 259.19 | -25.68 | 79.58 | 0.4362 | 774.0 | 625.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 8.42 | 259.25 | -25.62 | 82.37 | 0.4334 | 858.0 | 654.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 7.82 | 258.71 | -26.16 | 83.83 | 0.4412 | 524.0 | 408.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 8.02 | 258.35 | -26.52 | 83.42 | 0.4469 | 808.0 | 614.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 15.55 | 257.27 | -27.60 | 67.79 | 0.4840 | 607.0 | 419.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 10.61 | 255.58 | -29.29 | 78.45 | 0.4928 | 619.0 | 454.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 2.67 | 255.45 | -29.42 | 94.64 | 0.4942 | 600.0 | 497.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 4.95 | 255.26 | -29.61 | 89.99 | 0.4942 | 709.0 | 566.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 10.94 | 254.72 | -30.15 | 78.01 | 0.5061 | 569.0 | 508.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 5.09 | 254.98 | -29.90 | 89.69 | 0.4984 | 794.0 | 668.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 11.75 | 247.03 | -37.84 | 78.14 | 0.6160 | 588.0 | 507.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
