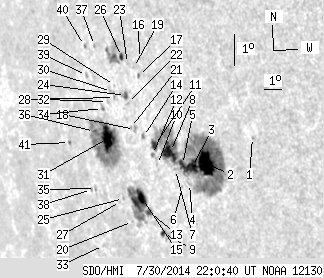

SDO HMI 2014-07-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.61 | 485.93 | 102.52 | 457.33 | -7.50 | 227.99 | -56.88 | 102.48 | 0.8520 | 570.3 | 148.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.82 | -6.60 | 233.36 | -51.51 | 102.73 | 0.7993 | 480.0 | 402.8 | |
| 27.25 | 260.43 | 23.86 | 231.69 | -7.61 | 230.79 | -54.08 | 103.28 | 0.8269 | 1060.8 | 372.3 | |
| 12.85 | -2.00 | 11.48 | -2.00 | -7.77 | 230.07 | -54.80 | 103.28 | 0.8340 | 735.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.55 | -8.32 | 229.80 | -55.08 | 103.85 | 0.8377 | 459.0 | 363.6 | |
| 4.62 | -2.00 | 4.18 | -2.00 | -7.75 | 229.53 | -55.34 | 103.12 | 0.8389 | 684.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -8.45 | 229.39 | -55.48 | 103.90 | 0.8417 | 161.0 | 169.4 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -7.94 | 229.11 | -55.76 | 103.24 | 0.8432 | 57.0 | 60.2 | |
| 19.82 | -2.00 | 18.19 | -2.00 | -7.39 | 228.95 | -55.92 | 102.56 | 0.8436 | 706.1 | 999999 | |
| 1.72 | 4.98 | 1.65 | 4.76 | -10.04 | 227.93 | -56.94 | 105.36 | 0.8579 | 405.3 | 285.1 | |
| 0.00 | 0.72 | 0.00 | 0.68 | -7.87 | 228.13 | -56.75 | 102.92 | 0.8519 | 220.0 | 203.6 | |
| 4.25 | -2.00 | 3.99 | -2.00 | -7.28 | 228.08 | -56.79 | 102.23 | 0.8513 | 496.1 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.88 | -7.57 | 227.91 | -56.97 | 102.53 | 0.8534 | 311.0 | 233.5 | |
| 2.72 | 52.95 | 2.64 | 52.21 | -9.44 | 227.29 | -57.58 | 104.51 | 0.8622 | 486.7 | -206.6 | |
| 0.45 | 2.17 | 0.43 | 2.07 | -7.05 | 227.50 | -57.37 | 101.83 | 0.8560 | 539.6 | 392.4 | |
| 7.51 | -13.00 | 7.35 | -13.00 | -9.02 | 226.99 | -57.88 | 103.97 | 0.8639 | 581.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -4.62 | 227.67 | -57.20 | 99.06 | 0.8505 | -411.0 | -330.8 | |
| 0.00 | 1.45 | 0.00 | 1.36 | -5.15 | 227.54 | -57.33 | 99.65 | 0.8525 | 176.0 | 214.6 | |
| 0.00 | 2.35 | 0.00 | 2.27 | -6.87 | 227.01 | -57.86 | 101.52 | 0.8599 | 467.0 | 395.7 | |
| 0.00 | 1.00 | 0.00 | 0.94 | -4.93 | 227.28 | -57.59 | 99.34 | 0.8544 | -421.0 | -347.1 | |
| 0.00 | 0.81 | 0.00 | 0.82 | -9.81 | 226.18 | -58.69 | 104.67 | 0.8722 | -511.0 | -393.4 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -6.83 | 226.79 | -58.08 | 101.42 | 0.8618 | 287.0 | 242.2 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -6.09 | 226.75 | -58.12 | 100.57 | 0.8609 | 590.0 | 436.3 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -4.83 | 226.95 | -57.92 | 99.17 | 0.8573 | -240.0 | -237.9 | |
| 1.99 | 4.53 | 1.93 | 4.39 | -5.84 | 226.68 | -58.19 | 100.28 | 0.8612 | 593.8 | 526.5 | |
| 0.00 | 1.18 | 0.00 | 1.19 | -9.12 | 225.84 | -59.03 | 103.81 | 0.8738 | -514.0 | -435.8 | |
| 2.08 | 21.45 | 2.01 | 20.92 | -4.64 | 226.63 | -58.24 | 98.89 | 0.8598 | 107.9 | -417.0 | |
| 0.00 | 0.81 | 0.00 | 0.83 | -9.23 | 225.62 | -59.25 | 103.89 | 0.8757 | -484.0 | -456.3 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -5.96 | 226.01 | -58.86 | 100.28 | 0.8672 | 356.0 | 337.5 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -5.59 | 226.07 | -58.80 | 99.86 | 0.8660 | 237.0 | 248.3 | |
| 0.00 | 2.63 | 0.00 | 2.60 | -5.79 | 225.86 | -59.01 | 100.05 | 0.8682 | 338.0 | 253.1 | |
| 21.91 | 102.56 | 22.24 | 104.90 | -7.30 | 225.32 | -59.55 | 101.64 | 0.8750 | 645.6 | 16.8 | |
| 0.00 | 1.36 | 0.00 | 1.36 | -6.13 | 225.56 | -59.31 | 100.37 | 0.8712 | 299.0 | 248.0 | |
| 0.00 | 1.27 | 0.00 | 1.37 | -10.75 | 224.09 | -60.78 | 105.21 | 0.8904 | -350.0 | -282.7 | |
| 0.36 | 2.44 | 0.37 | 2.48 | -6.37 | 225.21 | -59.66 | 100.58 | 0.8745 | 280.0 | 146.7 | |
| 0.00 | 1.72 | 0.00 | 1.83 | -8.96 | 224.15 | -60.72 | 103.24 | 0.8870 | -399.0 | -302.3 | |
| 1.54 | -31.00 | 1.60 | -31.00 | -7.14 | 224.55 | -60.32 | 101.31 | 0.8811 | -374.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.55 | -4.44 | 225.04 | -59.83 | 98.36 | 0.8732 | -485.0 | -455.9 | |
| 0.00 | 1.09 | 0.00 | 1.17 | -9.01 | 223.88 | -60.99 | 103.24 | 0.8892 | -195.0 | -143.0 | |
| 0.00 | 1.54 | 0.00 | 1.59 | -5.42 | 224.39 | -60.48 | 99.35 | 0.8799 | 129.0 | 79.1 | |
| 0.00 | 1.36 | 0.00 | 1.40 | -4.49 | 224.41 | -60.46 | 98.31 | 0.8784 | -347.0 | -315.1 | |
| 0.54 | 1.72 | 0.60 | 1.89 | -7.64 | 222.82 | -62.05 | 101.51 | 0.8953 | 483.7 | 384.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
