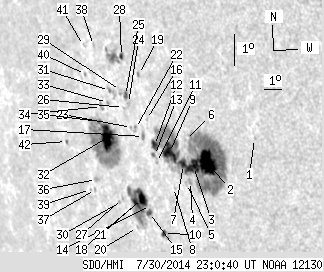

SDO HMI 2014-07-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.45 | 510.77 | 101.28 | 473.05 | -7.52 | 228.07 | -56.25 | 102.66 | 0.8463 | 569.4 | 180.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.66 | -6.64 | 233.38 | -50.94 | 102.94 | 0.7935 | 456.0 | 457.2 | |
| 26.71 | 276.11 | 23.05 | 242.28 | -7.59 | 230.86 | -53.46 | 103.42 | 0.8209 | 1076.5 | 368.7 | |
| 13.13 | -2.00 | 11.56 | -2.00 | -7.78 | 230.09 | -54.23 | 103.44 | 0.8286 | 743.2 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.85 | -8.26 | 229.84 | -54.48 | 103.95 | 0.8321 | 464.0 | 416.4 | |
| 0.00 | 1.90 | 0.00 | 1.70 | -8.35 | 229.60 | -54.71 | 103.98 | 0.8344 | 292.0 | 240.0 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -6.99 | 229.81 | -54.50 | 102.44 | 0.8297 | 223.0 | 156.3 | |
| 3.53 | -2.00 | 3.15 | -2.00 | -7.76 | 229.56 | -54.75 | 103.28 | 0.8336 | 719.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -8.53 | 228.86 | -55.46 | 104.01 | 0.8417 | 205.0 | 251.2 | |
| 14.48 | -2.00 | 13.12 | -2.00 | -7.44 | 228.87 | -55.45 | 102.74 | 0.8394 | 743.1 | 999999 | |
| 1.99 | 5.34 | 1.88 | 5.03 | -10.05 | 227.93 | -56.39 | 105.52 | 0.8531 | 346.4 | 283.1 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -7.82 | 228.08 | -56.24 | 102.99 | 0.8473 | 329.0 | 286.9 | |
| 4.44 | -2.00 | 4.10 | -2.00 | -7.29 | 228.07 | -56.24 | 102.37 | 0.8464 | 491.1 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.69 | -7.60 | 228.01 | -56.31 | 102.72 | 0.8475 | 353.0 | 278.3 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -9.22 | 227.42 | -56.90 | 104.43 | 0.8559 | 413.0 | 389.7 | |
| 2.35 | 52.78 | 2.25 | 51.17 | -9.45 | 227.30 | -57.02 | 104.67 | 0.8574 | 480.8 | -138.1 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -6.51 | 227.77 | -56.54 | 101.39 | 0.8477 | 422.0 | 343.4 | |
| 0.00 | 3.35 | 0.00 | 3.14 | -7.06 | 227.50 | -56.82 | 101.97 | 0.8511 | 532.0 | 376.1 | |
| 8.33 | -15.00 | 8.01 | -15.00 | -9.03 | 227.01 | -57.31 | 104.12 | 0.8591 | 549.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.68 | -5.13 | 227.54 | -56.77 | 99.75 | 0.8474 | 360.0 | 258.0 | |
| 0.00 | 0.91 | 0.00 | 0.89 | -9.99 | 226.46 | -57.86 | 105.07 | 0.8656 | -421.0 | -391.1 | |
| 5.07 | -15.00 | 4.94 | -15.00 | -9.22 | 226.61 | -57.71 | 104.24 | 0.8629 | -564.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.89 | -6.84 | 227.09 | -57.23 | 101.63 | 0.8544 | 519.0 | 432.0 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -6.83 | 226.86 | -57.45 | 101.57 | 0.8564 | 310.0 | 274.8 | |
| 0.00 | 1.27 | 0.00 | 1.21 | -6.09 | 226.83 | -57.49 | 100.71 | 0.8555 | 380.0 | 431.6 | |
| 1.81 | 4.62 | 1.72 | 4.41 | -5.85 | 226.69 | -57.62 | 100.41 | 0.8562 | 610.3 | 478.6 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -6.24 | 226.51 | -57.81 | 100.81 | 0.8585 | 445.0 | 451.1 | |
| 0.00 | 1.09 | 0.00 | 1.08 | -9.13 | 225.81 | -58.51 | 103.95 | 0.8695 | -528.0 | -475.2 | |
| 1.90 | 19.64 | 1.80 | 18.88 | -4.65 | 226.64 | -57.68 | 99.01 | 0.8548 | 113.6 | -399.8 | |
| 0.00 | 2.17 | 0.00 | 2.09 | -5.72 | 226.43 | -57.89 | 100.20 | 0.8584 | 459.0 | 404.1 | |
| 0.00 | 1.00 | 0.00 | 1.00 | -9.28 | 225.59 | -58.73 | 104.06 | 0.8715 | -525.0 | -475.0 | |
| 0.45 | 5.16 | 0.44 | 5.03 | -5.78 | 225.77 | -58.54 | 100.13 | 0.8642 | 305.6 | 308.4 | |
| 23.45 | 105.37 | 23.39 | 105.99 | -7.27 | 225.37 | -58.95 | 101.74 | 0.8700 | 685.9 | -10.7 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -6.16 | 225.59 | -58.73 | 100.53 | 0.8664 | 377.0 | 326.0 | |
| 0.00 | 2.72 | 0.00 | 2.71 | -6.32 | 225.20 | -59.12 | 100.63 | 0.8699 | 309.0 | 138.0 | |
| 1.27 | -32.00 | 1.28 | -32.00 | -6.81 | 224.98 | -59.34 | 101.14 | 0.8725 | 330.9 | 999999 | |
| 0.00 | 2.53 | 0.00 | 2.63 | -8.67 | 224.36 | -59.96 | 103.09 | 0.8806 | 337.0 | 236.7 | |
| 0.00 | 1.54 | 0.00 | 1.61 | -8.99 | 224.21 | -60.11 | 103.42 | 0.8823 | -226.0 | -273.6 | |
| 0.00 | 1.36 | 0.00 | 1.35 | -4.45 | 225.02 | -59.30 | 98.47 | 0.8687 | -570.0 | -451.4 | |
| 0.00 | 0.72 | 0.00 | 0.76 | -9.02 | 223.88 | -60.43 | 103.38 | 0.8849 | -227.0 | -138.2 | |
| 0.00 | 1.36 | 0.00 | 1.38 | -5.40 | 224.39 | -59.93 | 99.43 | 0.8753 | 56.0 | 103.3 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -4.50 | 224.41 | -59.91 | 98.42 | 0.8739 | -286.0 | -266.5 | |
| 0.54 | 1.63 | 0.59 | 1.77 | -7.62 | 222.72 | -61.60 | 101.59 | 0.8918 | 367.5 | 299.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
