SDO HMI 2014-07-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.18 | 66.63 | 18.08 | 54.00 | -18.68 | 237.38 | -46.94 | 118.99 | 0.7927 | -142.3 | -129.2 | |
|
previous
or next observation for the same group /

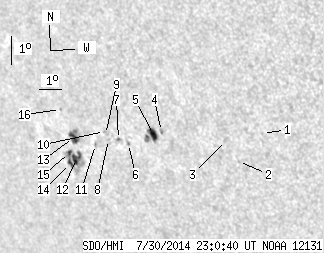

back to the solar disc SDO HMI 2014-07-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.58 | -17.74 | 244.78 | -39.54 | 121.81 | 0.7158 | 506.0 | 420.9 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -18.76 | 243.48 | -40.84 | 122.27 | 0.7346 | 400.0 | 303.8 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -18.09 | 243.12 | -41.20 | 121.25 | 0.7346 | 296.0 | 378.5 | |
| 0.00 | 2.17 | 0.00 | 1.65 | -17.98 | 240.36 | -43.96 | 119.60 | 0.7616 | 889.0 | 656.2 | |
| 6.52 | 13.49 | 5.00 | 10.38 | -18.11 | 239.96 | -44.35 | 119.55 | 0.7661 | 682.7 | 441.9 | |
| 0.00 | 1.54 | 0.00 | 1.21 | -18.50 | 238.70 | -45.62 | 119.37 | 0.7800 | 476.0 | 422.4 | |
| 0.36 | 1.54 | 0.29 | 1.22 | -18.40 | 238.27 | -46.05 | 119.04 | 0.7837 | 455.2 | 310.6 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -18.43 | 237.79 | -46.53 | 118.85 | 0.7883 | -374.0 | -288.9 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -18.27 | 237.70 | -46.61 | 118.63 | 0.7884 | -456.0 | -500.4 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -18.18 | 237.69 | -46.63 | 118.51 | 0.7881 | -709.0 | -523.0 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -18.65 | 237.10 | -47.22 | 118.78 | 0.7957 | -631.0 | -585.9 | |
| 6.34 | 27.70 | 5.30 | 23.25 | -19.20 | 235.97 | -48.35 | 118.90 | 0.8082 | -766.7 | -345.6 | |
| 4.98 | 12.04 | 4.13 | 9.97 | -18.49 | 236.10 | -48.22 | 118.14 | 0.8042 | -794.3 | -565.2 | |
| 2.17 | -12.00 | 1.84 | -12.00 | -19.39 | 235.60 | -48.72 | 118.95 | 0.8122 | -366.5 | 999999 | |
| 1.81 | -12.00 | 1.52 | -12.00 | -19.02 | 235.70 | -48.62 | 118.57 | 0.8099 | -548.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -17.59 | 235.81 | -48.51 | 116.97 | 0.8034 | 315.0 | 255.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
