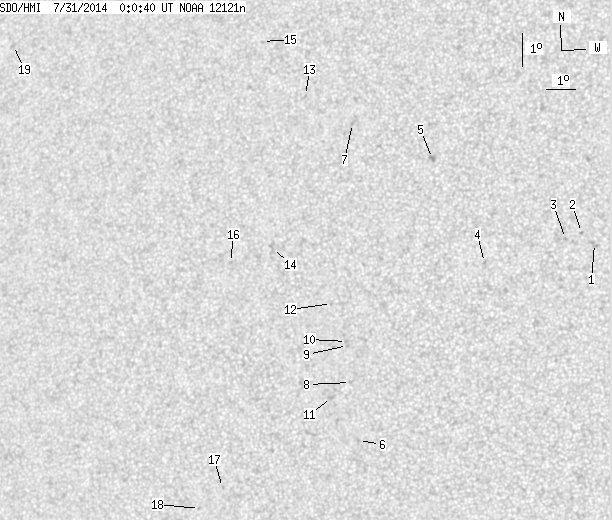

SDO HMI 2014-07-31 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 37.22 | 0.00 | 20.62 | 12.35 | 258.55 | -25.21 | 72.97 | 0.4373 | 253.2 | 121.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.26 | 0.00 | 2.22 | 12.93 | 267.03 | -16.74 | 65.16 | 0.3106 | -442.0 | -624.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.25 | 266.58 | -17.18 | 64.72 | 0.3194 | -977.0 | -724.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.05 | 266.07 | -17.69 | 65.87 | 0.3258 | -847.0 | -678.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 12.24 | 263.46 | -20.30 | 70.52 | 0.3612 | -818.0 | -559.5 | |
| 0.00 | 3.53 | 0.00 | 1.91 | 15.37 | 261.42 | -22.35 | 64.46 | 0.4081 | -974.0 | -758.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.66 | 259.63 | -24.14 | 86.41 | 0.4087 | 835.0 | 652.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.35 | 258.53 | -25.24 | 64.65 | 0.4546 | 696.0 | 498.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 8.42 | 259.26 | -24.51 | 82.19 | 0.4160 | 716.0 | 503.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 9.54 | 259.07 | -24.69 | 79.55 | 0.4207 | 787.0 | 600.4 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 9.66 | 259.03 | -24.73 | 79.28 | 0.4216 | 823.0 | 687.4 | |
| 0.00 | 3.53 | 0.00 | 1.93 | 7.94 | 258.64 | -25.12 | 83.44 | 0.4250 | 50.0 | 105.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 10.80 | 258.42 | -25.34 | 76.84 | 0.4336 | 523.0 | 394.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 17.14 | 256.74 | -27.02 | 64.32 | 0.4837 | 670.0 | 519.5 | |
| 0.00 | 5.79 | 0.00 | 3.25 | 12.39 | 256.21 | -27.55 | 74.24 | 0.4713 | 738.0 | 586.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 18.75 | 254.91 | -28.86 | 62.54 | 0.5171 | 649.0 | 528.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 11.90 | 254.78 | -28.98 | 75.78 | 0.4911 | 703.0 | 596.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 5.04 | 255.06 | -28.71 | 89.93 | 0.4804 | 758.0 | 586.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 4.36 | 254.28 | -29.48 | 91.23 | 0.4928 | 588.0 | 412.0 | |
| 0.00 | 2.99 | 0.00 | 1.92 | 18.13 | 245.43 | -38.34 | 68.21 | 0.6371 | 332.0 | 391.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
