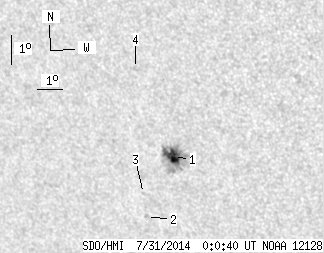

SDO HMI 2014-07-31 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.68 | 56.12 | 7.21 | 37.95 | -20.45 | 249.21 | -34.56 | 128.60 | 0.6824 | 877.2 | 417.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.68 | 51.33 | 7.21 | 34.67 | -20.49 | 249.32 | -34.45 | 128.74 | 0.6816 | 1015.6 | 416.9 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -22.64 | 247.63 | -36.14 | 130.02 | 0.7130 | 512.0 | 354.9 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -21.84 | 247.74 | -36.02 | 129.17 | 0.7064 | 618.0 | 487.8 | |
| 0.00 | 2.44 | 0.00 | 1.63 | -17.61 | 248.53 | -35.24 | 124.52 | 0.6698 | 503.0 | 437.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
