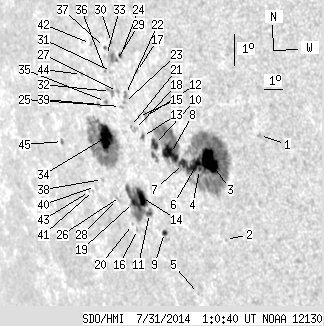

SDO HMI 2014-07-31 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.79 | 516.59 | 89.51 | 464.28 | -7.53 | 228.09 | -55.13 | 102.95 | 0.8361 | 559.9 | 211.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.29 | -6.57 | 233.54 | -49.68 | 103.21 | 0.7802 | 507.0 | 392.8 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -10.00 | 231.25 | -51.97 | 106.72 | 0.8121 | 360.0 | 319.5 | |
| 25.53 | 283.95 | 21.43 | 242.29 | -7.55 | 230.94 | -52.28 | 103.69 | 0.8093 | 1108.6 | 399.6 | |
| 1.09 | -3.00 | 0.93 | -3.00 | -7.88 | 230.37 | -52.85 | 103.93 | 0.8156 | 567.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -11.86 | 229.37 | -53.85 | 108.33 | 0.8346 | -394.0 | -399.0 | |
| 7.15 | -3.00 | 6.11 | -3.00 | -7.73 | 230.24 | -52.97 | 103.72 | 0.8165 | 807.2 | 999999 | |
| 4.26 | -3.00 | 3.69 | -3.00 | -7.75 | 229.56 | -53.65 | 103.57 | 0.8231 | 719.3 | 999999 | |
| 15.48 | -3.00 | 13.63 | -3.00 | -7.49 | 228.93 | -54.29 | 103.10 | 0.8286 | 746.5 | 999999 | |
| 1.99 | 4.44 | 1.82 | 4.05 | -10.04 | 228.04 | -55.17 | 105.84 | 0.8423 | 461.6 | 197.2 | |
| 4.35 | -3.00 | 3.90 | -3.00 | -7.28 | 228.12 | -55.10 | 102.64 | 0.8359 | 515.8 | 999999 | |
| 1.90 | 53.69 | 1.76 | 50.45 | -9.50 | 227.36 | -55.86 | 105.03 | 0.8473 | 402.6 | -102.9 | |
| 0.00 | 3.53 | 0.00 | 3.18 | -6.44 | 227.78 | -55.44 | 101.57 | 0.8374 | 557.0 | 394.3 | |
| 0.91 | 2.99 | 0.82 | 2.72 | -7.08 | 227.50 | -55.72 | 102.26 | 0.8412 | 473.7 | 331.7 | |
| 9.60 | -11.00 | 8.95 | -11.00 | -9.03 | 227.03 | -56.19 | 104.40 | 0.8493 | 603.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -6.47 | 227.39 | -55.83 | 101.52 | 0.8411 | 257.0 | 277.7 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -10.07 | 226.53 | -56.68 | 105.47 | 0.8557 | -388.0 | -369.7 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -5.07 | 227.49 | -55.72 | 99.90 | 0.8376 | 367.0 | 290.4 | |
| 0.00 | 3.17 | 0.00 | 2.91 | -6.90 | 227.09 | -56.12 | 101.96 | 0.8446 | 575.0 | 420.6 | |
| 2.72 | -11.00 | 2.57 | -11.00 | -9.22 | 226.53 | -56.69 | 104.50 | 0.8541 | -572.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -9.93 | 226.29 | -56.93 | 105.25 | 0.8576 | -471.0 | -381.5 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -6.82 | 226.88 | -56.33 | 101.82 | 0.8463 | 300.0 | 309.3 | |
| 0.00 | 2.90 | 0.00 | 2.67 | -5.84 | 226.77 | -56.44 | 100.65 | 0.8456 | 599.0 | 479.8 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -6.10 | 226.68 | -56.54 | 100.93 | 0.8469 | 736.0 | 634.2 | |
| 1.09 | 2.26 | 1.00 | 2.08 | -4.64 | 226.67 | -56.55 | 99.23 | 0.8446 | 106.2 | 114.4 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -6.24 | 226.43 | -56.79 | 101.04 | 0.8494 | 543.0 | 486.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -9.10 | 225.82 | -57.40 | 104.18 | 0.8600 | -521.0 | -381.0 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -5.78 | 226.33 | -56.88 | 100.49 | 0.8495 | 546.0 | 497.8 | |
| 0.00 | 1.90 | 0.00 | 1.84 | -9.21 | 225.62 | -57.60 | 104.26 | 0.8619 | -560.0 | -472.7 | |
| 0.36 | 10.87 | 0.34 | 10.13 | -4.82 | 226.42 | -56.80 | 99.38 | 0.8472 | 92.8 | -344.2 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -4.28 | 226.21 | -57.01 | 98.72 | 0.8483 | -559.0 | -566.5 | |
| 0.00 | 1.81 | 0.00 | 1.70 | -5.19 | 226.09 | -57.13 | 99.74 | 0.8508 | -157.0 | -36.7 | |
| 0.00 | 4.35 | 0.00 | 4.10 | -5.82 | 225.93 | -57.28 | 100.44 | 0.8532 | 380.0 | 309.9 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -4.71 | 225.87 | -57.35 | 99.15 | 0.8520 | -515.0 | -561.0 | |
| 23.00 | 111.01 | 22.21 | 107.98 | -7.29 | 225.37 | -57.84 | 102.02 | 0.8606 | 709.1 | 37.9 | |
| 0.36 | 1.54 | 0.35 | 1.47 | -6.16 | 225.59 | -57.63 | 100.76 | 0.8568 | 405.0 | 319.8 | |
| 0.00 | 1.18 | 0.00 | 1.11 | -5.22 | 225.74 | -57.48 | 99.71 | 0.8539 | 171.0 | 27.5 | |
| 0.00 | 1.54 | 0.00 | 1.45 | -4.47 | 225.78 | -57.43 | 98.85 | 0.8524 | -486.0 | -491.9 | |
| 0.00 | 1.72 | 0.00 | 1.70 | -8.64 | 224.88 | -58.33 | 103.44 | 0.8671 | 176.0 | 118.8 | |
| 0.00 | 2.26 | 0.00 | 2.19 | -6.28 | 225.22 | -58.00 | 100.83 | 0.8602 | 208.0 | 146.8 | |
| 0.00 | 1.09 | 0.00 | 1.09 | -8.90 | 224.40 | -58.81 | 103.63 | 0.8716 | -113.0 | -40.5 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -9.04 | 224.24 | -58.97 | 103.74 | 0.8732 | -286.0 | -320.9 | |
| 0.00 | 1.63 | 0.00 | 1.57 | -4.41 | 224.98 | -58.23 | 98.64 | 0.8594 | -615.0 | -430.6 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -9.10 | 223.99 | -59.23 | 103.75 | 0.8754 | -190.0 | -179.5 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -5.43 | 224.30 | -58.91 | 99.67 | 0.8668 | 170.0 | 97.5 | |
| 0.00 | 1.90 | 0.00 | 2.00 | -7.65 | 222.69 | -60.52 | 101.84 | 0.8835 | 380.0 | 342.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
