SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.19 | 0.00 | 14.89 | 13.70 | 262.77 | -18.25 | 63.72 | 0.3426 | -98.7 | -128.7 | |
|
previous
or next observation for the same group /

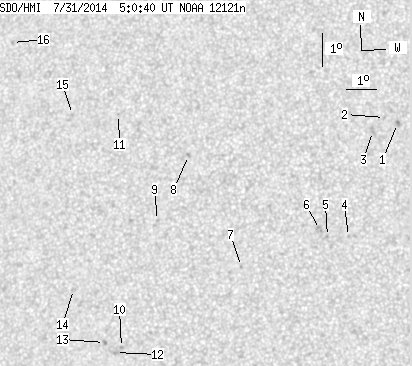

back to the solar disc SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.03 | 16.59 | 268.23 | -12.79 | 48.01 | 0.2867 | -936.0 | -810.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.77 | 267.80 | -13.22 | 48.45 | 0.2940 | -757.0 | -559.8 | |
| 0.00 | 4.17 | 0.00 | 2.16 | 16.32 | 267.43 | -13.59 | 50.36 | 0.2940 | -753.0 | -597.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.07 | 266.86 | -14.16 | 61.20 | 0.2731 | -707.0 | -573.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 13.06 | 266.19 | -14.83 | 62.29 | 0.2829 | -884.0 | -589.0 | |
| 0.00 | 4.53 | 0.00 | 2.34 | 13.27 | 265.92 | -15.11 | 62.03 | 0.2885 | -575.0 | -662.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.07 | 263.46 | -17.56 | 68.69 | 0.3181 | -813.0 | -604.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.42 | 261.43 | -19.59 | 61.69 | 0.3687 | -854.0 | -769.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.39 | 260.58 | -20.44 | 67.66 | 0.3689 | -837.0 | -645.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 9.47 | 259.68 | -21.34 | 78.63 | 0.3677 | 919.0 | 800.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.61 | 258.93 | -22.09 | 61.46 | 0.4119 | 684.0 | 553.4 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 9.31 | 259.49 | -21.53 | 79.13 | 0.3703 | 942.0 | 730.7 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 9.60 | 259.11 | -21.91 | 78.50 | 0.3771 | 869.0 | 764.8 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 11.18 | 257.95 | -23.07 | 75.00 | 0.3996 | 643.0 | 538.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.55 | 257.35 | -23.67 | 63.01 | 0.4337 | 735.0 | 576.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.70 | 254.92 | -26.10 | 60.65 | 0.4800 | 745.0 | 557.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
