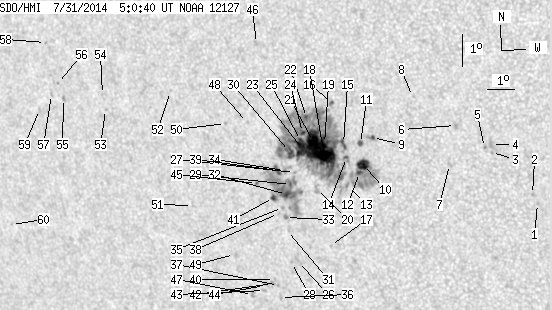

SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.20 | 567.78 | 73.94 | 342.16 | -8.10 | 249.16 | -31.86 | 113.23 | 0.5706 | 499.7 | 183.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.09 | 256.97 | -24.05 | 121.55 | 0.4741 | 614.0 | 496.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.81 | 256.82 | -24.20 | 120.88 | 0.4739 | 697.0 | 496.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.55 | 255.52 | -25.50 | 117.26 | 0.4821 | 654.0 | 533.2 | |
| 0.00 | 3.71 | 0.00 | 2.10 | -7.30 | 255.53 | -25.49 | 116.81 | 0.4802 | 819.0 | 719.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -7.41 | 255.29 | -25.73 | 116.78 | 0.4842 | 821.0 | 639.2 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -6.76 | 254.33 | -26.69 | 114.75 | 0.4930 | 803.0 | 621.0 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -7.99 | 254.05 | -26.97 | 116.74 | 0.5050 | 531.0 | 423.3 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.93 | 252.90 | -28.12 | 112.08 | 0.5079 | 579.0 | 532.5 | |
| 1.09 | 4.44 | 0.64 | 2.60 | -7.27 | 251.41 | -29.61 | 113.38 | 0.5361 | -395.4 | 86.4 | |
| 9.87 | 59.60 | 5.83 | 35.25 | -8.14 | 251.02 | -30.00 | 114.57 | 0.5463 | 1047.4 | 366.1 | |
| 1.63 | 3.17 | 0.96 | 1.87 | -7.48 | 250.97 | -30.05 | 113.42 | 0.5432 | 929.0 | 681.8 | |
| 1.90 | -10.00 | 1.13 | -10.00 | -8.40 | 250.86 | -30.16 | 114.88 | 0.5500 | 809.9 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.89 | -8.86 | 250.39 | -30.63 | 115.30 | 0.5590 | 347.0 | 169.5 | |
| 0.82 | 347.56 | 0.48 | 208.55 | -7.95 | 250.43 | -30.59 | 113.82 | 0.5530 | 885.4 | 336.5 | |
| 2.36 | -14.00 | 1.40 | -14.00 | -7.51 | 250.36 | -30.66 | 113.05 | 0.5515 | 1053.9 | 999999 | |
| 0.72 | 2.54 | 0.43 | 1.50 | -6.25 | 250.02 | -31.00 | 110.69 | 0.5493 | -470.2 | -265.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -10.76 | 249.57 | -31.45 | 117.72 | 0.5812 | -748.0 | -678.3 | |
| 32.61 | -14.00 | 19.53 | -14.00 | -7.96 | 249.64 | -31.38 | 113.29 | 0.5636 | 1057.5 | 999999 | |
| 8.24 | -14.00 | 4.92 | -14.00 | -7.55 | 249.68 | -31.34 | 112.64 | 0.5609 | 1399.7 | 999999 | |
| 0.00 | 4.98 | 0.00 | 3.01 | -9.01 | 249.25 | -31.77 | 114.73 | 0.5747 | 511.0 | 396.8 | |
| 24.73 | -14.00 | 14.83 | -14.00 | -7.51 | 249.28 | -31.74 | 112.31 | 0.5659 | 1134.7 | 999999 | |
| 1.45 | -14.00 | 0.87 | -14.00 | -6.77 | 249.09 | -31.93 | 110.97 | 0.5646 | 554.2 | 999999 | |
| 16.76 | -14.00 | 10.11 | -14.00 | -7.75 | 248.86 | -32.16 | 112.43 | 0.5727 | 828.5 | 999999 | |
| 1.27 | -14.00 | 0.76 | -14.00 | -7.25 | 248.90 | -32.12 | 111.64 | 0.5695 | 768.8 | 999999 | |
| 1.54 | -14.00 | 0.93 | -14.00 | -7.50 | 248.81 | -32.21 | 112.00 | 0.5721 | 853.6 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.96 | -11.34 | 248.32 | -32.70 | 117.68 | 0.6003 | -649.0 | -389.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -8.52 | 248.50 | -32.52 | 113.44 | 0.5817 | 817.0 | 713.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -11.38 | 248.06 | -32.96 | 117.56 | 0.6038 | -642.0 | -559.4 | |
| 1.18 | 84.69 | 0.72 | 51.89 | -8.91 | 248.31 | -32.71 | 113.93 | 0.5862 | 377.7 | -229.0 | |
| 7.07 | -14.00 | 4.29 | -14.00 | -7.87 | 248.38 | -32.64 | 112.32 | 0.5797 | 582.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -10.37 | 248.04 | -32.98 | 116.01 | 0.5980 | -664.0 | -662.2 | |
| 3.99 | -29.00 | 2.44 | -29.00 | -9.23 | 248.13 | -32.89 | 114.32 | 0.5903 | -608.9 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.28 | -9.96 | 248.01 | -33.01 | 115.37 | 0.5960 | -754.0 | -719.2 | |
| 0.36 | 4.53 | 0.22 | 2.76 | -8.48 | 248.14 | -32.88 | 113.13 | 0.5861 | 595.0 | 517.1 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -9.65 | 247.94 | -33.08 | 114.84 | 0.5952 | -824.0 | -649.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -12.53 | 247.49 | -33.53 | 118.84 | 0.6179 | -610.0 | -520.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -12.15 | 247.47 | -33.55 | 118.27 | 0.6157 | -702.0 | -561.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -9.85 | 247.77 | -33.25 | 115.03 | 0.5984 | -683.0 | -517.6 | |
| 2.99 | -29.00 | 1.83 | -29.00 | -8.49 | 247.88 | -33.14 | 112.99 | 0.5896 | 566.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -11.96 | 247.34 | -33.68 | 117.91 | 0.6161 | -655.0 | -485.2 | |
| 2.17 | -29.00 | 1.34 | -29.00 | -9.35 | 247.64 | -33.38 | 114.18 | 0.5973 | -872.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -12.10 | 247.25 | -33.77 | 118.04 | 0.6180 | -759.0 | -637.2 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -12.34 | 246.91 | -34.11 | 118.16 | 0.6236 | -592.0 | -461.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -12.18 | 246.94 | -34.08 | 117.94 | 0.6223 | -534.0 | -571.8 | |
| 0.45 | 1.36 | 0.28 | 0.84 | -8.94 | 247.05 | -33.97 | 113.18 | 0.6026 | -873.0 | -760.8 | |
| 0.00 | 2.63 | 0.00 | 1.59 | -4.57 | 247.41 | -33.61 | 106.35 | 0.5772 | 645.0 | 432.2 | |
| 0.00 | 3.17 | 0.00 | 2.02 | -12.49 | 246.44 | -34.58 | 118.06 | 0.6302 | -527.0 | -482.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -7.05 | 246.90 | -34.12 | 110.12 | 0.5950 | 504.0 | 393.2 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -11.25 | 245.94 | -35.08 | 115.93 | 0.6291 | -613.0 | -558.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -7.12 | 246.08 | -34.94 | 109.78 | 0.6062 | 648.0 | 535.8 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -9.78 | 244.53 | -36.49 | 112.94 | 0.6386 | -653.0 | -510.2 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -6.25 | 244.06 | -36.96 | 107.41 | 0.6286 | -455.0 | -344.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -6.97 | 241.45 | -39.57 | 107.30 | 0.6645 | -754.0 | -583.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -6.51 | 241.38 | -39.64 | 106.60 | 0.6637 | -616.0 | -600.0 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -6.73 | 239.78 | -41.24 | 106.27 | 0.6843 | -647.0 | -532.5 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -6.28 | 239.58 | -41.44 | 105.56 | 0.6851 | -704.0 | -549.2 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -6.64 | 239.30 | -41.72 | 105.95 | 0.6898 | -482.0 | -395.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -5.04 | 239.20 | -41.82 | 103.65 | 0.6858 | -545.0 | -430.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -7.15 | 238.75 | -42.27 | 106.44 | 0.6982 | -377.0 | -285.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -10.88 | 236.99 | -44.03 | 110.71 | 0.7320 | -510.0 | -462.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
