SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.83 | 531.10 | 81.83 | 451.81 | -7.60 | 228.21 | -52.81 | 103.65 | 0.8141 | 599.5 | 243.1 | |
|
previous
or next observation for the same group /

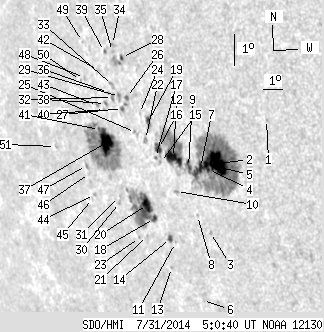

back to the solar disc SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.48 | -5.99 | 233.59 | -47.44 | 103.13 | 0.7544 | 641.0 | 568.7 | |
| 25.63 | 268.21 | 20.43 | 216.34 | -7.55 | 231.08 | -49.94 | 104.36 | 0.7854 | 1121.8 | 423.8 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -9.77 | 230.33 | -50.69 | 106.85 | 0.7990 | 430.0 | 281.9 | |
| 0.27 | -2.00 | 0.22 | -2.00 | -7.77 | 230.61 | -50.41 | 104.50 | 0.7909 | 690.3 | 999999 | |
| 4.98 | -2.00 | 4.02 | -2.00 | -7.62 | 230.54 | -50.48 | 104.29 | 0.7912 | 777.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -11.99 | 229.39 | -51.63 | 109.21 | 0.8143 | -351.0 | -388.0 | |
| 5.25 | -2.00 | 4.26 | -2.00 | -7.74 | 230.23 | -50.79 | 104.35 | 0.7947 | 703.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -9.27 | 229.79 | -51.23 | 106.09 | 0.8030 | 287.0 | 202.9 | |
| 3.26 | -2.00 | 2.68 | -2.00 | -7.75 | 229.64 | -51.38 | 104.20 | 0.8008 | 718.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.60 | -8.59 | 228.88 | -52.14 | 105.00 | 0.8104 | 498.0 | 442.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -10.23 | 228.47 | -52.55 | 106.83 | 0.8184 | 332.0 | 264.6 | |
| 13.50 | -2.00 | 11.28 | -2.00 | -7.53 | 228.93 | -52.09 | 103.73 | 0.8074 | 779.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -11.05 | 228.06 | -52.96 | 107.67 | 0.8244 | 349.0 | 241.7 | |
| 1.99 | 3.44 | 1.72 | 2.97 | -10.12 | 228.24 | -52.78 | 106.63 | 0.8203 | 545.2 | 315.9 | |
| 0.00 | 1.63 | 0.00 | 1.39 | -7.74 | 228.23 | -52.79 | 103.79 | 0.8148 | 411.0 | 372.9 | |
| 4.62 | 7.79 | 3.92 | 6.61 | -7.31 | 228.20 | -52.82 | 103.26 | 0.8141 | 571.1 | 380.4 | |
| 0.36 | 1.27 | 0.31 | 1.08 | -7.60 | 228.00 | -53.02 | 103.57 | 0.8167 | 335.8 | 241.6 | |
| 2.36 | 64.86 | 2.06 | 57.40 | -9.55 | 227.55 | -53.47 | 105.75 | 0.8255 | 477.8 | -33.7 | |
| 2.45 | 6.34 | 2.09 | 5.41 | -6.47 | 227.83 | -53.19 | 102.16 | 0.8160 | 594.6 | 402.9 | |
| 9.33 | -18.00 | 8.19 | -18.00 | -9.13 | 227.27 | -53.75 | 105.18 | 0.8271 | 659.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -10.12 | 227.04 | -53.98 | 106.28 | 0.8316 | 149.0 | 65.4 | |
| 0.00 | 3.17 | 0.00 | 2.73 | -7.08 | 227.58 | -53.44 | 102.83 | 0.8197 | 577.0 | 372.2 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -10.22 | 226.59 | -54.43 | 106.27 | 0.8360 | -313.0 | -319.8 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -6.28 | 227.39 | -53.63 | 101.83 | 0.8199 | 299.0 | 279.0 | |
| 0.00 | 2.90 | 0.00 | 2.52 | -6.90 | 227.08 | -53.94 | 102.49 | 0.8241 | 479.0 | 359.6 | |
| 1.00 | 2.26 | 0.87 | 1.97 | -5.84 | 226.78 | -54.24 | 101.15 | 0.8249 | 641.6 | 494.4 | |
| 0.72 | 4.08 | 0.64 | 3.58 | -6.20 | 226.51 | -54.51 | 101.52 | 0.8282 | 632.1 | 576.9 | |
| 1.00 | 8.61 | 0.87 | 7.52 | -4.61 | 226.68 | -54.34 | 99.66 | 0.8237 | 33.3 | -171.4 | |
| 0.00 | 2.90 | 0.00 | 2.55 | -5.84 | 226.41 | -54.61 | 101.06 | 0.8285 | 582.0 | 509.2 | |
| 0.00 | 1.72 | 0.00 | 1.57 | -9.19 | 225.76 | -55.26 | 104.85 | 0.8413 | -467.0 | -380.7 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -9.00 | 225.81 | -55.21 | 104.64 | 0.8404 | -531.0 | -396.9 | |
| 0.00 | 3.08 | 0.00 | 2.74 | -5.90 | 226.03 | -54.99 | 101.05 | 0.8323 | 528.0 | 363.8 | |
| 0.00 | 3.35 | 0.00 | 2.97 | -5.52 | 226.08 | -54.94 | 100.62 | 0.8311 | 234.0 | 265.4 | |
| 0.00 | 2.26 | 0.00 | 1.99 | -4.24 | 226.24 | -54.78 | 99.13 | 0.8273 | -685.0 | -534.3 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -4.46 | 226.22 | -54.80 | 99.38 | 0.8279 | -362.0 | -330.7 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -5.76 | 225.83 | -55.19 | 100.84 | 0.8339 | 317.0 | 263.0 | |
| 18.30 | 112.41 | 16.63 | 102.81 | -7.34 | 225.45 | -55.57 | 102.62 | 0.8404 | 800.3 | 92.5 | |
| 0.45 | 1.18 | 0.41 | 1.06 | -6.12 | 225.61 | -55.41 | 101.22 | 0.8366 | 333.0 | 275.1 | |
| 0.45 | 1.72 | 0.40 | 1.53 | -4.50 | 225.78 | -55.24 | 99.34 | 0.8321 | -519.8 | -448.1 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -6.31 | 225.53 | -55.49 | 101.42 | 0.8377 | 392.0 | 371.0 | |
| 0.91 | -37.00 | 0.83 | -37.00 | -6.97 | 225.14 | -55.88 | 102.10 | 0.8425 | 393.9 | 999999 | |
| 0.00 | 2.26 | 0.00 | 2.04 | -5.12 | 225.38 | -55.64 | 99.98 | 0.8370 | -376.0 | -267.8 | |
| 0.00 | 1.99 | 0.00 | 1.81 | -6.22 | 225.16 | -55.86 | 101.23 | 0.8410 | 241.0 | 151.8 | |
| 0.00 | 1.45 | 0.00 | 1.37 | -9.06 | 224.41 | -56.61 | 104.34 | 0.8531 | -357.0 | -222.9 | |
| 0.00 | 0.91 | 0.00 | 0.86 | -9.19 | 224.26 | -56.76 | 104.46 | 0.8546 | -287.0 | -296.4 | |
| 0.00 | 1.72 | 0.00 | 1.62 | -8.41 | 224.28 | -56.74 | 103.57 | 0.8530 | 299.0 | 267.4 | |
| 0.00 | 2.08 | 0.00 | 1.97 | -8.17 | 224.17 | -56.85 | 103.26 | 0.8535 | 569.0 | 411.0 | |
| 0.00 | 1.72 | 0.00 | 1.59 | -5.40 | 224.57 | -56.45 | 100.15 | 0.8450 | 302.0 | 248.0 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -4.29 | 224.60 | -56.42 | 98.85 | 0.8428 | -409.0 | -305.7 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -5.51 | 224.33 | -56.69 | 100.23 | 0.8474 | 316.0 | 219.0 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -7.72 | 222.47 | -58.55 | 102.36 | 0.8674 | 339.0 | 313.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
