SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.61 | 74.75 | 22.70 | 56.85 | -18.67 | 237.51 | -43.51 | 120.71 | 0.7603 | -158.8 | -67.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-31 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

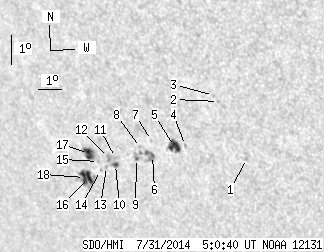

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.76 | -18.27 | 242.93 | -38.09 | 123.40 | 0.7040 | 658.0 | 624.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -16.43 | 242.25 | -38.77 | 120.65 | 0.7005 | 669.0 | 552.7 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -16.25 | 242.09 | -38.93 | 120.32 | 0.7012 | 592.0 | 515.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -18.00 | 240.47 | -40.55 | 121.54 | 0.7277 | 769.0 | 652.4 | |
| 8.33 | 11.41 | 6.05 | 8.28 | -18.06 | 239.98 | -41.04 | 121.33 | 0.7330 | 744.6 | 479.6 | |
| 0.63 | 13.59 | 0.47 | 10.12 | -18.43 | 238.93 | -42.09 | 121.18 | 0.7455 | 747.4 | 357.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.93 | 239.04 | -41.98 | 120.63 | 0.7419 | 376.0 | 492.0 | |
| 0.00 | 1.72 | 0.00 | 1.28 | -18.20 | 238.48 | -42.54 | 120.64 | 0.7488 | 414.0 | 404.9 | |
| 0.72 | -6.00 | 0.54 | -6.00 | -18.58 | 238.18 | -42.84 | 120.94 | 0.7537 | 1.6 | 999999 | |
| 1.63 | 3.90 | 1.25 | 2.99 | -18.86 | 237.16 | -43.86 | 120.72 | 0.7649 | -784.0 | -633.8 | |
| 0.00 | 1.81 | 0.00 | 1.38 | -18.62 | 237.24 | -43.78 | 120.47 | 0.7630 | -426.0 | -442.4 | |
| 0.00 | 3.62 | 0.00 | 2.78 | -18.64 | 236.92 | -44.10 | 120.33 | 0.7662 | -746.0 | -715.5 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -18.95 | 236.73 | -44.29 | 120.60 | 0.7696 | -735.0 | -637.2 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -19.11 | 236.40 | -44.62 | 120.62 | 0.7734 | -629.0 | -589.7 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -18.81 | 236.41 | -44.61 | 120.27 | 0.7719 | -592.0 | -528.8 | |
| 5.53 | 20.38 | 4.36 | 16.13 | -19.39 | 235.80 | -45.22 | 120.63 | 0.7804 | -798.9 | -336.7 | |
| 7.34 | 10.24 | 5.72 | 7.98 | -18.57 | 236.04 | -44.98 | 119.80 | 0.7744 | -783.5 | -521.0 | |
| 5.43 | -16.00 | 4.31 | -16.00 | -19.40 | 235.56 | -45.46 | 120.53 | 0.7827 | -584.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
