SDO HMI 2014-07-31 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.19 | 570.57 | 85.33 | 466.44 | -7.57 | 228.25 | -51.13 | 104.08 | 0.7973 | 574.3 | 235.6 | |
|
previous
or next observation for the same group /

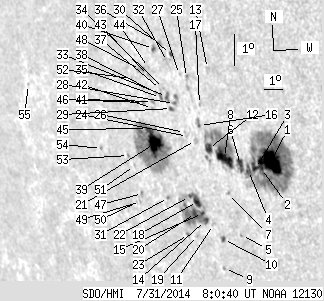

back to the solar disc SDO HMI 2014-07-31 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.70 | 312.72 | 25.93 | 244.08 | -7.51 | 231.14 | -48.24 | 104.83 | 0.7673 | 1075.0 | 381.2 | |
| 0.27 | -1.00 | 0.21 | -1.00 | -7.76 | 230.68 | -48.69 | 105.01 | 0.7729 | 686.3 | 999999 | |
| 2.36 | -1.00 | 1.84 | -1.00 | -7.78 | 230.40 | -48.98 | 104.95 | 0.7760 | 789.8 | 999999 | |
| 3.90 | -1.00 | 3.07 | -1.00 | -7.87 | 230.05 | -49.32 | 104.95 | 0.7798 | 666.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -9.97 | 229.32 | -50.05 | 107.30 | 0.7931 | -281.0 | -345.2 | |
| 5.25 | -1.00 | 4.17 | -1.00 | -7.71 | 229.70 | -49.68 | 104.65 | 0.7831 | 660.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -8.68 | 228.95 | -50.43 | 105.61 | 0.7934 | 626.0 | 457.7 | |
| 15.67 | -1.00 | 12.62 | -1.00 | -7.55 | 228.96 | -50.42 | 104.23 | 0.7905 | 779.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -11.09 | 228.23 | -51.15 | 108.30 | 0.8071 | 305.0 | 257.4 | |
| 1.09 | 2.63 | 0.90 | 2.17 | -10.16 | 228.40 | -50.98 | 107.24 | 0.8029 | 487.3 | 323.9 | |
| 0.00 | 1.63 | 0.00 | 1.36 | -9.72 | 228.00 | -51.38 | 106.59 | 0.8057 | 516.0 | 474.3 | |
| 4.89 | -1.00 | 4.00 | -1.00 | -7.33 | 228.21 | -51.17 | 103.74 | 0.7976 | 565.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -4.83 | 228.50 | -50.88 | 100.72 | 0.7890 | -238.0 | -324.9 | |
| 2.26 | 59.70 | 1.90 | 50.68 | -9.63 | 227.62 | -51.76 | 106.36 | 0.8092 | 344.5 | 36.0 | |
| 1.27 | -14.00 | 1.06 | -14.00 | -9.42 | 227.52 | -51.86 | 106.07 | 0.8096 | 568.4 | 999999 | |
| 0.45 | 3.80 | 0.37 | 3.13 | -6.64 | 227.87 | -51.50 | 102.81 | 0.7994 | 598.6 | 486.5 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -5.98 | 227.97 | -51.41 | 102.02 | 0.7970 | 446.0 | 390.8 | |
| 5.62 | -14.00 | 4.73 | -14.00 | -9.05 | 227.34 | -52.03 | 105.58 | 0.8105 | 744.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.31 | -10.14 | 227.10 | -52.28 | 106.81 | 0.8155 | 310.0 | 189.9 | |
| 3.80 | -14.00 | 3.22 | -14.00 | -9.45 | 227.16 | -52.22 | 106.00 | 0.8132 | -239.0 | 999999 | |
| 0.00 | 2.99 | 0.00 | 2.47 | -7.13 | 227.60 | -51.78 | 103.33 | 0.8033 | 548.0 | 377.3 | |
| 0.91 | -14.00 | 0.77 | -14.00 | -8.93 | 226.96 | -52.41 | 105.32 | 0.8139 | 509.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.64 | -10.15 | 226.64 | -52.74 | 106.68 | 0.8200 | -567.0 | -456.4 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -7.03 | 227.21 | -52.16 | 103.11 | 0.8070 | 316.0 | 260.9 | |
| 0.00 | 2.08 | 0.00 | 1.71 | -5.19 | 227.42 | -51.95 | 100.91 | 0.8009 | -616.0 | -479.7 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -6.92 | 227.08 | -52.30 | 102.94 | 0.8081 | 308.0 | 267.1 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -5.12 | 227.08 | -52.30 | 100.75 | 0.8043 | 471.0 | 334.6 | |
| 0.45 | 4.35 | 0.38 | 3.65 | -6.05 | 226.71 | -52.67 | 101.79 | 0.8099 | 731.6 | 546.1 | |
| 1.27 | 2.45 | 1.07 | 2.07 | -6.22 | 226.53 | -52.85 | 101.95 | 0.8121 | 552.3 | 427.4 | |
| 1.00 | 2.08 | 0.83 | 1.74 | -4.53 | 226.69 | -52.68 | 99.94 | 0.8071 | 76.4 | 93.8 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -9.05 | 225.86 | -53.52 | 105.15 | 0.8248 | -537.0 | -475.2 | |
| 0.00 | 5.34 | 0.00 | 4.49 | -4.77 | 226.52 | -52.86 | 100.18 | 0.8093 | -137.0 | -115.3 | |
| 1.18 | 4.89 | 1.00 | 4.14 | -5.86 | 226.33 | -53.05 | 101.47 | 0.8134 | 598.5 | 514.6 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -5.63 | 226.20 | -53.17 | 101.15 | 0.8141 | 390.0 | 273.6 | |
| 0.82 | 2.45 | 0.70 | 2.09 | -5.92 | 226.01 | -53.37 | 101.46 | 0.8166 | 381.7 | 301.7 | |
| 0.00 | 2.45 | 0.00 | 2.06 | -4.23 | 226.22 | -53.16 | 99.47 | 0.8113 | -480.0 | -488.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -5.67 | 226.04 | -53.33 | 101.17 | 0.8158 | 458.0 | 418.7 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -5.78 | 225.77 | -53.61 | 101.24 | 0.8187 | 357.0 | 251.9 | |
| 17.85 | 121.12 | 15.55 | 106.12 | -7.39 | 225.46 | -53.92 | 103.08 | 0.8250 | 794.1 | 113.4 | |
| 0.91 | 2.99 | 0.77 | 2.55 | -4.42 | 225.84 | -53.54 | 99.61 | 0.8155 | -597.7 | -420.2 | |
| 0.00 | 1.72 | 0.00 | 1.49 | -6.08 | 225.57 | -53.81 | 101.55 | 0.8212 | 437.0 | 353.0 | |
| 0.00 | 1.27 | 0.00 | 1.10 | -6.30 | 225.54 | -53.84 | 101.80 | 0.8220 | 485.0 | 372.4 | |
| 0.00 | 1.36 | 0.00 | 1.17 | -5.28 | 225.47 | -53.90 | 100.57 | 0.8206 | -1.0 | -53.5 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -5.03 | 225.50 | -53.87 | 100.27 | 0.8199 | -623.0 | -524.0 | |
| 0.27 | -39.00 | 0.24 | -39.00 | -6.95 | 225.17 | -54.21 | 102.49 | 0.8268 | 496.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.43 | -6.15 | 225.09 | -54.29 | 101.51 | 0.8260 | 300.0 | 173.7 | |
| 0.00 | 2.17 | 0.00 | 1.96 | -9.04 | 224.48 | -54.90 | 104.76 | 0.8376 | -258.0 | -156.4 | |
| 0.00 | 4.53 | 0.00 | 3.94 | -5.13 | 225.07 | -54.30 | 100.29 | 0.8242 | -500.0 | -443.6 | |
| 0.00 | 1.18 | 0.00 | 1.07 | -9.30 | 224.31 | -55.07 | 105.02 | 0.8398 | -282.0 | -295.8 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -9.35 | 224.08 | -55.30 | 105.02 | 0.8420 | -196.0 | -172.5 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -8.18 | 224.24 | -55.14 | 103.70 | 0.8381 | 453.0 | 339.7 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -5.45 | 224.55 | -54.82 | 100.56 | 0.8298 | 174.0 | 246.2 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -7.89 | 223.97 | -55.41 | 103.29 | 0.8400 | 255.0 | 299.4 | |
| 0.00 | 1.45 | 0.00 | 1.37 | -7.80 | 222.49 | -56.89 | 102.83 | 0.8531 | 462.0 | 362.5 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -6.16 | 218.46 | -60.92 | 100.11 | 0.8845 | -399.0 | -308.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
